Documentation for Health Level Seven (HL7)
Definition Type: ComplexType
Name: MRG.CONTENT
Namespace: urn:hl7-org:v2xml
Containing Schema: segments.xsd
Abstract
Collapse XSD Schema Diagram:

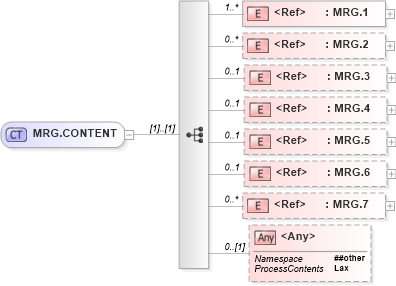

Drilldown into MRG.7 in schema fields_xsd Drilldown into MRG.6 in schema fields_xsd Drilldown into MRG.5 in schema fields_xsd Drilldown into MRG.4 in schema fields_xsd Drilldown into MRG.3 in schema fields_xsd Drilldown into MRG.2 in schema fields_xsd Drilldown into MRG.1 in schema fields_xsdXSD Diagram of MRG.CONTENT in schema segments_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:complexType name="MRG.CONTENT">
    <xsd:sequence>
        <xsd:element ref="MRG.1" minOccurs="1" maxOccurs="unbounded" />
        <xsd:element ref="MRG.2" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="MRG.3" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="MRG.4" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="MRG.5" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="MRG.6" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="MRG.7" minOccurs="0" maxOccurs="unbounded" />
        <xsd:any processContents="lax" namespace="##other" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MRG.1 nsA:MRG.1 1 unbounded
MRG.2 nsA:MRG.2 0 unbounded
MRG.3 nsA:MRG.3 0 1
MRG.4 nsA:MRG.4 0 1
MRG.5 nsA:MRG.5 0 1
MRG.6 nsA:MRG.6 0 1
MRG.7 nsA:MRG.7 0 unbounded
<xs:any> Allowed namespace: '##other' 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:MRG
