Documentation for Health Level Seven (HL7)
Definition Type: ComplexType
Name: MSH.CONTENT
Namespace: urn:hl7-org:v2xml
Containing Schema: segments.xsd
Abstract

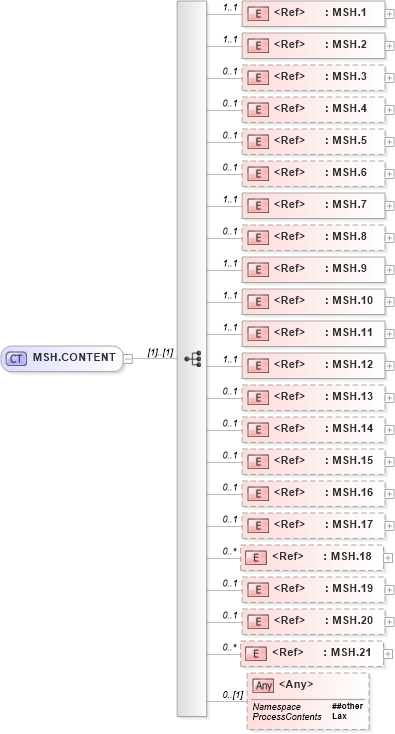

Collapse XSD Schema Diagram:
Drilldown into MSH.21 in schema fields_xsd Drilldown into MSH.20 in schema fields_xsd Drilldown into MSH.19 in schema fields_xsd Drilldown into MSH.18 in schema fields_xsd Drilldown into MSH.17 in schema fields_xsd Drilldown into MSH.16 in schema fields_xsd Drilldown into MSH.15 in schema fields_xsd Drilldown into MSH.14 in schema fields_xsd Drilldown into MSH.13 in schema fields_xsd Drilldown into MSH.12 in schema fields_xsd Drilldown into MSH.11 in schema fields_xsd Drilldown into MSH.10 in schema fields_xsd Drilldown into MSH.9 in schema fields_xsd Drilldown into MSH.8 in schema fields_xsd Drilldown into MSH.7 in schema fields_xsd Drilldown into MSH.6 in schema fields_xsd Drilldown into MSH.5 in schema fields_xsd Drilldown into MSH.4 in schema fields_xsd Drilldown into MSH.3 in schema fields_xsd Drilldown into MSH.2 in schema fields_xsd Drilldown into MSH.1 in schema fields_xsdXSD Diagram of MSH.CONTENT in schema segments_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:complexType name="MSH.CONTENT">
    <xsd:sequence>
        <xsd:element ref="MSH.1" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="MSH.2" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="MSH.3" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="MSH.4" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="MSH.5" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="MSH.6" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="MSH.7" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="MSH.8" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="MSH.9" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="MSH.10" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="MSH.11" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="MSH.12" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="MSH.13" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="MSH.14" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="MSH.15" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="MSH.16" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="MSH.17" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="MSH.18" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="MSH.19" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="MSH.20" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="MSH.21" minOccurs="0" maxOccurs="unbounded" />
        <xsd:any processContents="lax" namespace="##other" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MSH.1 nsA:MSH.1 1 1
MSH.2 nsA:MSH.2 1 1
MSH.3 nsA:MSH.3 0 1
MSH.4 nsA:MSH.4 0 1
MSH.5 nsA:MSH.5 0 1
MSH.6 nsA:MSH.6 0 1
MSH.7 nsA:MSH.7 1 1
MSH.8 nsA:MSH.8 0 1
MSH.9 nsA:MSH.9 1 1
MSH.10 nsA:MSH.10 1 1
MSH.11 nsA:MSH.11 1 1
MSH.12 nsA:MSH.12 1 1
MSH.13 nsA:MSH.13 0 1
MSH.14 nsA:MSH.14 0 1
MSH.15 nsA:MSH.15 0 1
MSH.16 nsA:MSH.16 0 1
MSH.17 nsA:MSH.17 0 1
MSH.18 nsA:MSH.18 0 unbounded
MSH.19 nsA:MSH.19 0 1
MSH.20 nsA:MSH.20 0 1
MSH.21 nsA:MSH.21 0 unbounded
<xs:any> Allowed namespace: '##other' 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:MSH
