Documentation for Health Level Seven (HL7)
Definition Type: ComplexType
Name: OBX.CONTENT
Namespace: urn:hl7-org:v2xml
Containing Schema: segments.xsd
Abstract

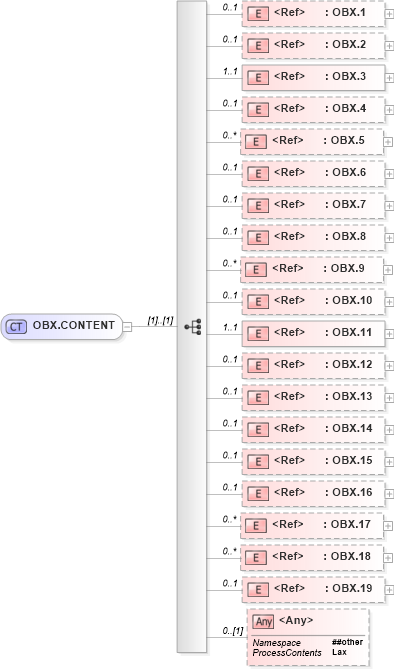

Collapse XSD Schema Diagram:
Drilldown into OBX.19 in schema fields_xsd Drilldown into OBX.18 in schema fields_xsd Drilldown into OBX.17 in schema fields_xsd Drilldown into OBX.16 in schema fields_xsd Drilldown into OBX.15 in schema fields_xsd Drilldown into OBX.14 in schema fields_xsd Drilldown into OBX.13 in schema fields_xsd Drilldown into OBX.12 in schema fields_xsd Drilldown into OBX.11 in schema fields_xsd Drilldown into OBX.10 in schema fields_xsd Drilldown into OBX.9 in schema fields_xsd Drilldown into OBX.8 in schema fields_xsd Drilldown into OBX.7 in schema fields_xsd Drilldown into OBX.6 in schema fields_xsd Drilldown into OBX.5 in schema fields_xsd Drilldown into OBX.4 in schema fields_xsd Drilldown into OBX.3 in schema fields_xsd Drilldown into OBX.2 in schema fields_xsd Drilldown into OBX.1 in schema fields_xsdXSD Diagram of OBX.CONTENT in schema segments_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:complexType name="OBX.CONTENT">
    <xsd:sequence>
        <xsd:element ref="OBX.1" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OBX.2" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OBX.3" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="OBX.4" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OBX.5" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="OBX.6" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OBX.7" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OBX.8" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OBX.9" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="OBX.10" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OBX.11" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="OBX.12" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OBX.13" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OBX.14" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OBX.15" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OBX.16" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OBX.17" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="OBX.18" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="OBX.19" minOccurs="0" maxOccurs="1" />
        <xsd:any processContents="lax" namespace="##other" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
OBX.1 nsA:OBX.1 0 1
OBX.2 nsA:OBX.2 0 1
OBX.3 nsA:OBX.3 1 1
OBX.4 nsA:OBX.4 0 1
OBX.5 nsA:OBX.5 0 unbounded
OBX.6 nsA:OBX.6 0 1
OBX.7 nsA:OBX.7 0 1
OBX.8 nsA:OBX.8 0 1
OBX.9 nsA:OBX.9 0 unbounded
OBX.10 nsA:OBX.10 0 1
OBX.11 nsA:OBX.11 1 1
OBX.12 nsA:OBX.12 0 1
OBX.13 nsA:OBX.13 0 1
OBX.14 nsA:OBX.14 0 1
OBX.15 nsA:OBX.15 0 1
OBX.16 nsA:OBX.16 0 1
OBX.17 nsA:OBX.17 0 unbounded
OBX.18 nsA:OBX.18 0 unbounded
OBX.19 nsA:OBX.19 0 1
<xs:any> Allowed namespace: '##other' 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:OBX
