Definition Type: ComplexType
Name: OM7.CONTENT
Namespace: urn:hl7-org:v2xml
Containing Schema: segments.xsd
Abstract

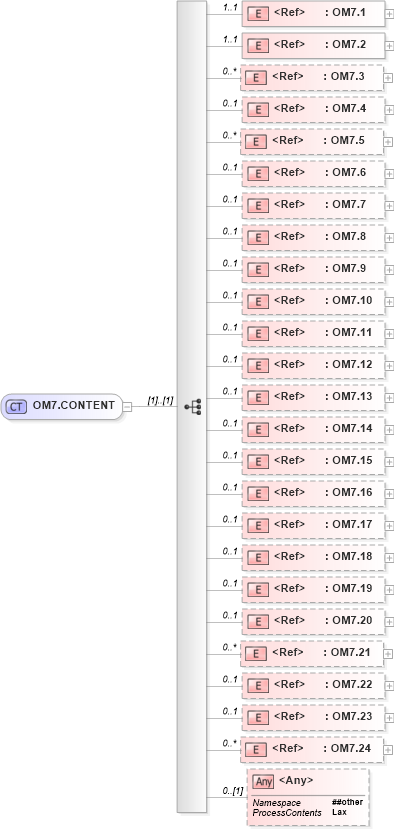

Collapse XSD Schema Diagram:
Drilldown into OM7.24 in schema fields_xsd Drilldown into OM7.23 in schema fields_xsd Drilldown into OM7.22 in schema fields_xsd Drilldown into OM7.21 in schema fields_xsd Drilldown into OM7.20 in schema fields_xsd Drilldown into OM7.19 in schema fields_xsd Drilldown into OM7.18 in schema fields_xsd Drilldown into OM7.17 in schema fields_xsd Drilldown into OM7.16 in schema fields_xsd Drilldown into OM7.15 in schema fields_xsd Drilldown into OM7.14 in schema fields_xsd Drilldown into OM7.13 in schema fields_xsd Drilldown into OM7.12 in schema fields_xsd Drilldown into OM7.11 in schema fields_xsd Drilldown into OM7.10 in schema fields_xsd Drilldown into OM7.9 in schema fields_xsd Drilldown into OM7.8 in schema fields_xsd Drilldown into OM7.7 in schema fields_xsd Drilldown into OM7.6 in schema fields_xsd Drilldown into OM7.5 in schema fields_xsd Drilldown into OM7.4 in schema fields_xsd Drilldown into OM7.3 in schema fields_xsd Drilldown into OM7.2 in schema fields_xsd Drilldown into OM7.1 in schema fields_xsdXSD Diagram of OM7.CONTENT in schema segments_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:complexType name="OM7.CONTENT">
    <xsd:sequence>
        <xsd:element ref="OM7.1" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="OM7.2" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="OM7.3" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="OM7.4" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OM7.5" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="OM7.6" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OM7.7" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OM7.8" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OM7.9" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OM7.10" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OM7.11" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OM7.12" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OM7.13" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OM7.14" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OM7.15" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OM7.16" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OM7.17" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OM7.18" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OM7.19" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OM7.20" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OM7.21" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="OM7.22" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OM7.23" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OM7.24" minOccurs="0" maxOccurs="unbounded" />
        <xsd:any processContents="lax" namespace="##other" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
OM7.1 nsA:OM7.1 1 1
OM7.2 nsA:OM7.2 1 1
OM7.3 nsA:OM7.3 0 unbounded
OM7.4 nsA:OM7.4 0 1
OM7.5 nsA:OM7.5 0 unbounded
OM7.6 nsA:OM7.6 0 1
OM7.7 nsA:OM7.7 0 1
OM7.8 nsA:OM7.8 0 1
OM7.9 nsA:OM7.9 0 1
OM7.10 nsA:OM7.10 0 1
OM7.11 nsA:OM7.11 0 1
OM7.12 nsA:OM7.12 0 1
OM7.13 nsA:OM7.13 0 1
OM7.14 nsA:OM7.14 0 1
OM7.15 nsA:OM7.15 0 1
OM7.16 nsA:OM7.16 0 1
OM7.17 nsA:OM7.17 0 1
OM7.18 nsA:OM7.18 0 1
OM7.19 nsA:OM7.19 0 1
OM7.20 nsA:OM7.20 0 1
OM7.21 nsA:OM7.21 0 unbounded
OM7.22 nsA:OM7.22 0 1
OM7.23 nsA:OM7.23 0 1
OM7.24 nsA:OM7.24 0 unbounded
<xs:any> Allowed namespace: '##other' 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:OM7
