Documentation for Health Level Seven (HL7)
Definition Type: ComplexType
Name: OMG_O19.ORDER.CONTENT
Namespace: urn:hl7-org:v2xml
Containing Schema: OMG_O19.xsd
Abstract

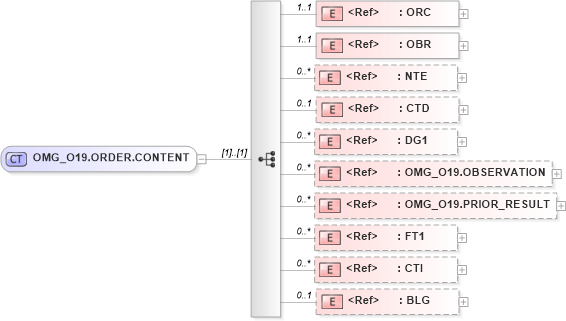

Collapse XSD Schema Diagram:
Drilldown into BLG in schema segments_xsd Drilldown into CTI in schema segments_xsd Drilldown into FT1 in schema segments_xsd Drilldown into OMG_O19.PRIOR_RESULT in schema omg_o19_xsd Drilldown into OMG_O19.OBSERVATION in schema omg_o19_xsd Drilldown into DG1 in schema segments_xsd Drilldown into CTD in schema segments_xsd Drilldown into NTE in schema segments_xsd Drilldown into OBR in schema segments_xsd Drilldown into ORC in schema segments_xsdXSD Diagram of OMG_O19.ORDER.CONTENT in schema omg_o19_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:complexType name="OMG_O19.ORDER.CONTENT">
    <xsd:sequence>
        <xsd:element ref="ORC" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="OBR" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="NTE" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="CTD" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="DG1" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="OMG_O19.OBSERVATION" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="OMG_O19.PRIOR_RESULT" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="FT1" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="CTI" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="BLG" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ORC nsA:ORC 1 1
OBR nsA:OBR 1 1
NTE nsA:NTE 0 unbounded
CTD nsA:CTD 0 1
DG1 nsA:DG1 0 unbounded
OMG_O19.OBSERVATION nsA:OMG_O19.OBSERVATION 0 unbounded
OMG_O19.PRIOR_RESULT nsA:OMG_O19.PRIOR_RESULT 0 unbounded
FT1 nsA:FT1 0 unbounded
CTI nsA:CTI 0 unbounded
BLG nsA:BLG 0 1
Collapse Derivation Tree:
Collapse References:
nsA:OMG_O19.ORDER
