Documentation for Health Level Seven (HL7)
Definition Type: ComplexType
Name: OML_O21.ORDER.CONTENT
Namespace: urn:hl7-org:v2xml
Containing Schema: OML_O21.xsd
Abstract

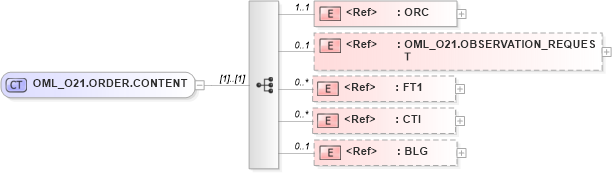

Collapse XSD Schema Diagram:
Drilldown into BLG in schema segments_xsd Drilldown into CTI in schema segments_xsd Drilldown into FT1 in schema segments_xsd Drilldown into OML_O21.OBSERVATION_REQUEST in schema oml_o21_xsd Drilldown into ORC in schema segments_xsdXSD Diagram of OML_O21.ORDER.CONTENT in schema oml_o21_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:complexType name="OML_O21.ORDER.CONTENT">
    <xsd:sequence>
        <xsd:element ref="ORC" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="OML_O21.OBSERVATION_REQUEST" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="FT1" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="CTI" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="BLG" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ORC nsA:ORC 1 1
OML_O21.OBSERVATION_REQUEST nsA:OML_O21.OBSERVATION_REQUEST 0 1
FT1 nsA:FT1 0 unbounded
CTI nsA:CTI 0 unbounded
BLG nsA:BLG 0 1
Collapse Derivation Tree:
Collapse References:
nsA:OML_O21.ORDER
