Documentation for Health Level Seven (HL7)
Definition Type: ComplexType
Name: OMP_O09.ORDER.CONTENT
Namespace: urn:hl7-org:v2xml
Containing Schema: OMP_O09.xsd
Abstract

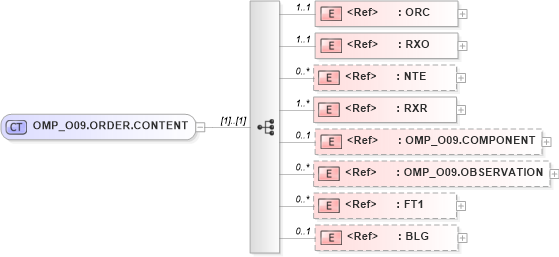

Collapse XSD Schema Diagram:
Drilldown into BLG in schema segments_xsd Drilldown into FT1 in schema segments_xsd Drilldown into OMP_O09.OBSERVATION in schema omp_o09_xsd Drilldown into OMP_O09.COMPONENT in schema omp_o09_xsd Drilldown into RXR in schema segments_xsd Drilldown into NTE in schema segments_xsd Drilldown into RXO in schema segments_xsd Drilldown into ORC in schema segments_xsdXSD Diagram of OMP_O09.ORDER.CONTENT in schema omp_o09_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:complexType name="OMP_O09.ORDER.CONTENT">
    <xsd:sequence>
        <xsd:element ref="ORC" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="RXO" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="NTE" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="RXR" minOccurs="1" maxOccurs="unbounded" />
        <xsd:element ref="OMP_O09.COMPONENT" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OMP_O09.OBSERVATION" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="FT1" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="BLG" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ORC nsA:ORC 1 1
RXO nsA:RXO 1 1
NTE nsA:NTE 0 unbounded
RXR nsA:RXR 1 unbounded
OMP_O09.COMPONENT nsA:OMP_O09.COMPONENT 0 1
OMP_O09.OBSERVATION nsA:OMP_O09.OBSERVATION 0 unbounded
FT1 nsA:FT1 0 unbounded
BLG nsA:BLG 0 1
Collapse Derivation Tree:
Collapse References:
nsA:OMP_O09.ORDER
