Documentation for Health Level Seven (HL7)
Definition Type: ComplexType
Name: ORC.CONTENT
Namespace: urn:hl7-org:v2xml
Containing Schema: segments.xsd
Abstract

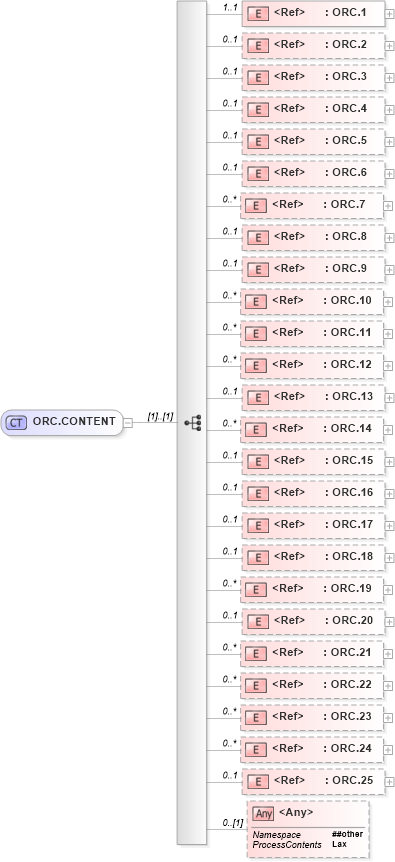

Collapse XSD Schema Diagram:
Drilldown into ORC.25 in schema fields_xsd Drilldown into ORC.24 in schema fields_xsd Drilldown into ORC.23 in schema fields_xsd Drilldown into ORC.22 in schema fields_xsd Drilldown into ORC.21 in schema fields_xsd Drilldown into ORC.20 in schema fields_xsd Drilldown into ORC.19 in schema fields_xsd Drilldown into ORC.18 in schema fields_xsd Drilldown into ORC.17 in schema fields_xsd Drilldown into ORC.16 in schema fields_xsd Drilldown into ORC.15 in schema fields_xsd Drilldown into ORC.14 in schema fields_xsd Drilldown into ORC.13 in schema fields_xsd Drilldown into ORC.12 in schema fields_xsd Drilldown into ORC.11 in schema fields_xsd Drilldown into ORC.10 in schema fields_xsd Drilldown into ORC.9 in schema fields_xsd Drilldown into ORC.8 in schema fields_xsd Drilldown into ORC.7 in schema fields_xsd Drilldown into ORC.6 in schema fields_xsd Drilldown into ORC.5 in schema fields_xsd Drilldown into ORC.4 in schema fields_xsd Drilldown into ORC.3 in schema fields_xsd Drilldown into ORC.2 in schema fields_xsd Drilldown into ORC.1 in schema fields_xsdXSD Diagram of ORC.CONTENT in schema segments_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:complexType name="ORC.CONTENT">
    <xsd:sequence>
        <xsd:element ref="ORC.1" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="ORC.2" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ORC.3" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ORC.4" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ORC.5" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ORC.6" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ORC.7" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ORC.8" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ORC.9" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ORC.10" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ORC.11" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ORC.12" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ORC.13" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ORC.14" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ORC.15" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ORC.16" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ORC.17" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ORC.18" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ORC.19" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ORC.20" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ORC.21" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ORC.22" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ORC.23" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ORC.24" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="ORC.25" minOccurs="0" maxOccurs="1" />
        <xsd:any processContents="lax" namespace="##other" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ORC.1 nsA:ORC.1 1 1
ORC.2 nsA:ORC.2 0 1
ORC.3 nsA:ORC.3 0 1
ORC.4 nsA:ORC.4 0 1
ORC.5 nsA:ORC.5 0 1
ORC.6 nsA:ORC.6 0 1
ORC.7 nsA:ORC.7 0 unbounded
ORC.8 nsA:ORC.8 0 1
ORC.9 nsA:ORC.9 0 1
ORC.10 nsA:ORC.10 0 unbounded
ORC.11 nsA:ORC.11 0 unbounded
ORC.12 nsA:ORC.12 0 unbounded
ORC.13 nsA:ORC.13 0 1
ORC.14 nsA:ORC.14 0 unbounded
ORC.15 nsA:ORC.15 0 1
ORC.16 nsA:ORC.16 0 1
ORC.17 nsA:ORC.17 0 1
ORC.18 nsA:ORC.18 0 1
ORC.19 nsA:ORC.19 0 unbounded
ORC.20 nsA:ORC.20 0 1
ORC.21 nsA:ORC.21 0 unbounded
ORC.22 nsA:ORC.22 0 unbounded
ORC.23 nsA:ORC.23 0 unbounded
ORC.24 nsA:ORC.24 0 unbounded
ORC.25 nsA:ORC.25 0 1
<xs:any> Allowed namespace: '##other' 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:ORC
