Documentation for Health Level Seven (HL7)
Definition Type: ComplexType
Name: ORU_R01.ORDER_OBSERVATION.CONTENT
Namespace: urn:hl7-org:v2xml
Containing Schema: ORU_R01.xsd
Abstract

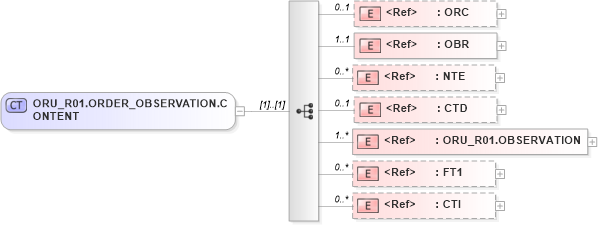

Collapse XSD Schema Diagram:
Drilldown into CTI in schema segments_xsd Drilldown into FT1 in schema segments_xsd Drilldown into ORU_R01.OBSERVATION in schema oru_r01_xsd Drilldown into CTD in schema segments_xsd Drilldown into NTE in schema segments_xsd Drilldown into OBR in schema segments_xsd Drilldown into ORC in schema segments_xsdXSD Diagram of ORU_R01.ORDER_OBSERVATION.CONTENT in schema oru_r01_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:complexType name="ORU_R01.ORDER_OBSERVATION.CONTENT">
    <xsd:sequence>
        <xsd:element ref="ORC" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="OBR" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="NTE" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="CTD" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ORU_R01.OBSERVATION" minOccurs="1" maxOccurs="unbounded" />
        <xsd:element ref="FT1" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="CTI" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ORC nsA:ORC 0 1
OBR nsA:OBR 1 1
NTE nsA:NTE 0 unbounded
CTD nsA:CTD 0 1
ORU_R01.OBSERVATION nsA:ORU_R01.OBSERVATION 1 unbounded
FT1 nsA:FT1 0 unbounded
CTI nsA:CTI 0 unbounded
Collapse Derivation Tree:
Collapse References:
nsA:ORU_R01.ORDER_OBSERVATION
