Documentation for Health Level Seven (HL7)
Definition Type: ComplexType
Name: PEX_P07.CONTENT
Namespace: urn:hl7-org:v2xml
Containing Schema: PEX_P07.xsd
Abstract

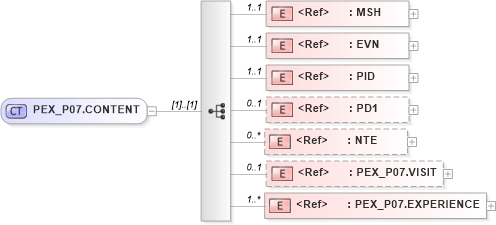

Collapse XSD Schema Diagram:
Drilldown into PEX_P07.EXPERIENCE in schema pex_p07_xsd Drilldown into PEX_P07.VISIT in schema pex_p07_xsd Drilldown into NTE in schema segments_xsd Drilldown into PD1 in schema segments_xsd Drilldown into PID in schema segments_xsd Drilldown into EVN in schema segments_xsd Drilldown into MSH in schema segments_xsdXSD Diagram of PEX_P07.CONTENT in schema pex_p07_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:complexType name="PEX_P07.CONTENT">
    <xsd:sequence>
        <xsd:element ref="MSH" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="EVN" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="PID" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="PD1" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="NTE" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="PEX_P07.VISIT" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PEX_P07.EXPERIENCE" minOccurs="1" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MSH nsA:MSH 1 1
EVN nsA:EVN 1 1
PID nsA:PID 1 1
PD1 nsA:PD1 0 1
NTE nsA:NTE 0 unbounded
PEX_P07.VISIT nsA:PEX_P07.VISIT 0 1
PEX_P07.EXPERIENCE nsA:PEX_P07.EXPERIENCE 1 unbounded
Collapse Derivation Tree:
Collapse References:
nsA:PEX_P07
