Documentation for Health Level Seven (HL7)
Definition Type: ComplexType
Name: PPV_PCA.CONTENT
Namespace: urn:hl7-org:v2xml
Containing Schema: PPV_PCA.xsd
Abstract

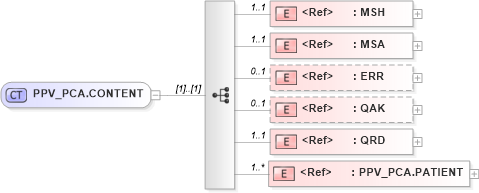

Collapse XSD Schema Diagram:
Drilldown into PPV_PCA.PATIENT in schema ppv_pca_xsd Drilldown into QRD in schema segments_xsd Drilldown into QAK in schema segments_xsd Drilldown into ERR in schema segments_xsd Drilldown into MSA in schema segments_xsd Drilldown into MSH in schema segments_xsdXSD Diagram of PPV_PCA.CONTENT in schema ppv_pca_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:complexType name="PPV_PCA.CONTENT">
    <xsd:sequence>
        <xsd:element ref="MSH" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="MSA" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="ERR" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="QAK" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="QRD" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="PPV_PCA.PATIENT" minOccurs="1" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MSH nsA:MSH 1 1
MSA nsA:MSA 1 1
ERR nsA:ERR 0 1
QAK nsA:QAK 0 1
QRD nsA:QRD 1 1
PPV_PCA.PATIENT nsA:PPV_PCA.PATIENT 1 unbounded
Collapse Derivation Tree:
Collapse References:
nsA:PPV_PCA
