Documentation for Health Level Seven (HL7)
Definition Type: ComplexType
Name: PRD.CONTENT
Namespace: urn:hl7-org:v2xml
Containing Schema: segments.xsd
Abstract

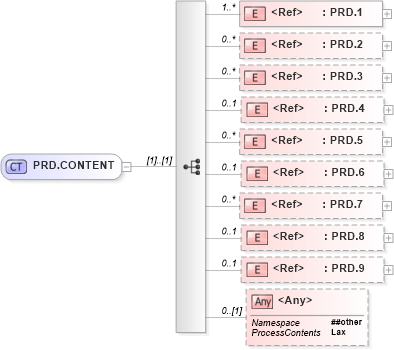

Collapse XSD Schema Diagram:
Drilldown into PRD.9 in schema fields_xsd Drilldown into PRD.8 in schema fields_xsd Drilldown into PRD.7 in schema fields_xsd Drilldown into PRD.6 in schema fields_xsd Drilldown into PRD.5 in schema fields_xsd Drilldown into PRD.4 in schema fields_xsd Drilldown into PRD.3 in schema fields_xsd Drilldown into PRD.2 in schema fields_xsd Drilldown into PRD.1 in schema fields_xsdXSD Diagram of PRD.CONTENT in schema segments_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:complexType name="PRD.CONTENT">
    <xsd:sequence>
        <xsd:element ref="PRD.1" minOccurs="1" maxOccurs="unbounded" />
        <xsd:element ref="PRD.2" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="PRD.3" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="PRD.4" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PRD.5" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="PRD.6" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PRD.7" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="PRD.8" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="PRD.9" minOccurs="0" maxOccurs="1" />
        <xsd:any processContents="lax" namespace="##other" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PRD.1 nsA:PRD.1 1 unbounded
PRD.2 nsA:PRD.2 0 unbounded
PRD.3 nsA:PRD.3 0 unbounded
PRD.4 nsA:PRD.4 0 1
PRD.5 nsA:PRD.5 0 unbounded
PRD.6 nsA:PRD.6 0 1
PRD.7 nsA:PRD.7 0 unbounded
PRD.8 nsA:PRD.8 0 1
PRD.9 nsA:PRD.9 0 1
<xs:any> Allowed namespace: '##other' 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:PRD
