Documentation for Health Level Seven (HL7)
Definition Type: ComplexType
Name: PTR_PCF.ORDER_DETAIL.CONTENT
Namespace: urn:hl7-org:v2xml
Containing Schema: PTR_PCF.xsd
Abstract
Collapse XSD Schema Diagram:

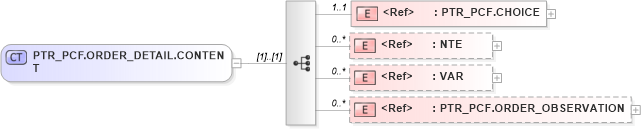

Drilldown into PTR_PCF.ORDER_OBSERVATION in schema ptr_pcf_xsd Drilldown into VAR in schema segments_xsd Drilldown into NTE in schema segments_xsd Drilldown into PTR_PCF.CHOICE in schema ptr_pcf_xsdXSD Diagram of PTR_PCF.ORDER_DETAIL.CONTENT in schema ptr_pcf_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:complexType name="PTR_PCF.ORDER_DETAIL.CONTENT">
    <xsd:sequence>
        <xsd:element ref="PTR_PCF.CHOICE" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="NTE" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="VAR" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="PTR_PCF.ORDER_OBSERVATION" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PTR_PCF.CHOICE nsA:PTR_PCF.CHOICE 1 1
NTE nsA:NTE 0 unbounded
VAR nsA:VAR 0 unbounded
PTR_PCF.ORDER_OBSERVATION nsA:PTR_PCF.ORDER_OBSERVATION 0 unbounded
Collapse Derivation Tree:
Collapse References:
nsA:PTR_PCF.ORDER_DETAIL
