Documentation for Health Level Seven (HL7)
Definition Type: ComplexType
Name: QBP_K13.CONTENT
Namespace: urn:hl7-org:v2xml
Containing Schema: QBP_K13.xsd
Abstract
Collapse XSD Schema Diagram:

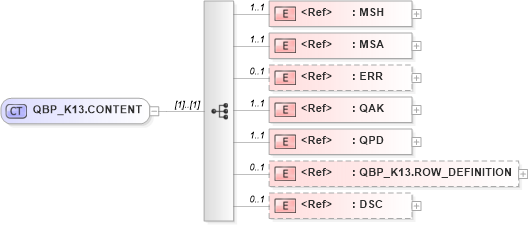

Drilldown into DSC in schema segments_xsd Drilldown into QBP_K13.ROW_DEFINITION in schema qbp_k13_xsd Drilldown into QPD in schema segments_xsd Drilldown into QAK in schema segments_xsd Drilldown into ERR in schema segments_xsd Drilldown into MSA in schema segments_xsd Drilldown into MSH in schema segments_xsdXSD Diagram of QBP_K13.CONTENT in schema qbp_k13_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:complexType name="QBP_K13.CONTENT">
    <xsd:sequence>
        <xsd:element ref="MSH" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="MSA" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="ERR" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="QAK" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="QPD" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="QBP_K13.ROW_DEFINITION" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="DSC" minOccurs="0" maxOccurs="1" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MSH nsA:MSH 1 1
MSA nsA:MSA 1 1
ERR nsA:ERR 0 1
QAK nsA:QAK 1 1
QPD nsA:QPD 1 1
QBP_K13.ROW_DEFINITION nsA:QBP_K13.ROW_DEFINITION 0 1
DSC nsA:DSC 0 1
Collapse Derivation Tree:
Collapse References:
nsA:QBP_K13
