Documentation for Health Level Seven (HL7)
Definition Type: ComplexType
Name: QRD.CONTENT
Namespace: urn:hl7-org:v2xml
Containing Schema: segments.xsd
Abstract

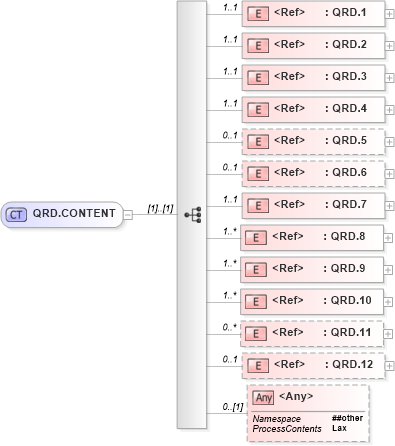

Collapse XSD Schema Diagram:
Drilldown into QRD.12 in schema fields_xsd Drilldown into QRD.11 in schema fields_xsd Drilldown into QRD.10 in schema fields_xsd Drilldown into QRD.9 in schema fields_xsd Drilldown into QRD.8 in schema fields_xsd Drilldown into QRD.7 in schema fields_xsd Drilldown into QRD.6 in schema fields_xsd Drilldown into QRD.5 in schema fields_xsd Drilldown into QRD.4 in schema fields_xsd Drilldown into QRD.3 in schema fields_xsd Drilldown into QRD.2 in schema fields_xsd Drilldown into QRD.1 in schema fields_xsdXSD Diagram of QRD.CONTENT in schema segments_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:complexType name="QRD.CONTENT">
    <xsd:sequence>
        <xsd:element ref="QRD.1" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="QRD.2" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="QRD.3" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="QRD.4" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="QRD.5" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="QRD.6" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="QRD.7" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="QRD.8" minOccurs="1" maxOccurs="unbounded" />
        <xsd:element ref="QRD.9" minOccurs="1" maxOccurs="unbounded" />
        <xsd:element ref="QRD.10" minOccurs="1" maxOccurs="unbounded" />
        <xsd:element ref="QRD.11" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="QRD.12" minOccurs="0" maxOccurs="1" />
        <xsd:any processContents="lax" namespace="##other" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
QRD.1 nsA:QRD.1 1 1
QRD.2 nsA:QRD.2 1 1
QRD.3 nsA:QRD.3 1 1
QRD.4 nsA:QRD.4 1 1
QRD.5 nsA:QRD.5 0 1
QRD.6 nsA:QRD.6 0 1
QRD.7 nsA:QRD.7 1 1
QRD.8 nsA:QRD.8 1 unbounded
QRD.9 nsA:QRD.9 1 unbounded
QRD.10 nsA:QRD.10 1 unbounded
QRD.11 nsA:QRD.11 0 unbounded
QRD.12 nsA:QRD.12 0 1
<xs:any> Allowed namespace: '##other' 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:QRD
