Documentation for Health Level Seven (HL7)
Definition Type: ComplexType
Name: QRF.CONTENT
Namespace: urn:hl7-org:v2xml
Containing Schema: segments.xsd
Abstract

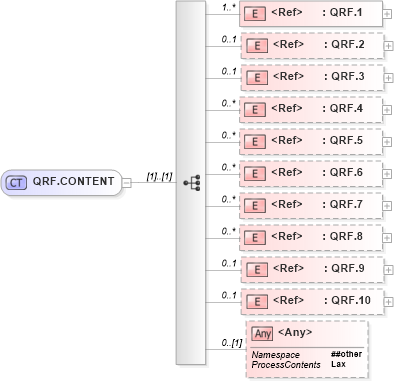

Collapse XSD Schema Diagram:
Drilldown into QRF.10 in schema fields_xsd Drilldown into QRF.9 in schema fields_xsd Drilldown into QRF.8 in schema fields_xsd Drilldown into QRF.7 in schema fields_xsd Drilldown into QRF.6 in schema fields_xsd Drilldown into QRF.5 in schema fields_xsd Drilldown into QRF.4 in schema fields_xsd Drilldown into QRF.3 in schema fields_xsd Drilldown into QRF.2 in schema fields_xsd Drilldown into QRF.1 in schema fields_xsdXSD Diagram of QRF.CONTENT in schema segments_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:complexType name="QRF.CONTENT">
    <xsd:sequence>
        <xsd:element ref="QRF.1" minOccurs="1" maxOccurs="unbounded" />
        <xsd:element ref="QRF.2" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="QRF.3" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="QRF.4" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="QRF.5" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="QRF.6" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="QRF.7" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="QRF.8" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="QRF.9" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="QRF.10" minOccurs="0" maxOccurs="1" />
        <xsd:any processContents="lax" namespace="##other" minOccurs="0" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
QRF.1 nsA:QRF.1 1 unbounded
QRF.2 nsA:QRF.2 0 1
QRF.3 nsA:QRF.3 0 1
QRF.4 nsA:QRF.4 0 unbounded
QRF.5 nsA:QRF.5 0 unbounded
QRF.6 nsA:QRF.6 0 unbounded
QRF.7 nsA:QRF.7 0 unbounded
QRF.8 nsA:QRF.8 0 unbounded
QRF.9 nsA:QRF.9 0 1
QRF.10 nsA:QRF.10 0 1
<xs:any> Allowed namespace: '##other' 0 (1)
Collapse Derivation Tree:
Collapse References:
nsA:QRF
