Documentation for Health Level Seven (HL7)
Definition Type: ComplexType
Name: RAS_O17.CONTENT
Namespace: urn:hl7-org:v2xml
Containing Schema: RAS_O17.xsd
Abstract
Collapse XSD Schema Diagram:

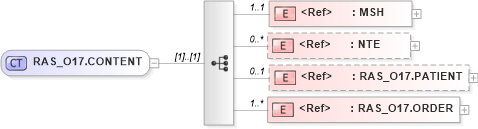

Drilldown into RAS_O17.ORDER in schema ras_o17_xsd Drilldown into RAS_O17.PATIENT in schema ras_o17_xsd Drilldown into NTE in schema segments_xsd Drilldown into MSH in schema segments_xsdXSD Diagram of RAS_O17.CONTENT in schema ras_o17_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:complexType name="RAS_O17.CONTENT">
    <xsd:sequence>
        <xsd:element ref="MSH" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="NTE" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="RAS_O17.PATIENT" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="RAS_O17.ORDER" minOccurs="1" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MSH nsA:MSH 1 1
NTE nsA:NTE 0 unbounded
RAS_O17.PATIENT nsA:RAS_O17.PATIENT 0 1
RAS_O17.ORDER nsA:RAS_O17.ORDER 1 unbounded
Collapse Derivation Tree:
Collapse References:
nsA:RAS_O17
