Documentation for Health Level Seven (HL7)
Definition Type: ComplexType
Name: RAS_O17.ORDER.CONTENT
Namespace: urn:hl7-org:v2xml
Containing Schema: RAS_O17.xsd
Abstract

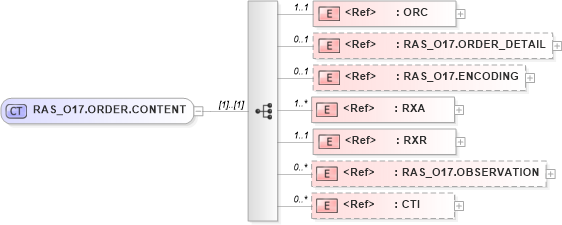

Collapse XSD Schema Diagram:
Drilldown into CTI in schema segments_xsd Drilldown into RAS_O17.OBSERVATION in schema ras_o17_xsd Drilldown into RXR in schema segments_xsd Drilldown into RXA in schema segments_xsd Drilldown into RAS_O17.ENCODING in schema ras_o17_xsd Drilldown into RAS_O17.ORDER_DETAIL in schema ras_o17_xsd Drilldown into ORC in schema segments_xsdXSD Diagram of RAS_O17.ORDER.CONTENT in schema ras_o17_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:complexType name="RAS_O17.ORDER.CONTENT">
    <xsd:sequence>
        <xsd:element ref="ORC" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="RAS_O17.ORDER_DETAIL" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="RAS_O17.ENCODING" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="RXA" minOccurs="1" maxOccurs="unbounded" />
        <xsd:element ref="RXR" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="RAS_O17.OBSERVATION" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="CTI" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ORC nsA:ORC 1 1
RAS_O17.ORDER_DETAIL nsA:RAS_O17.ORDER_DETAIL 0 1
RAS_O17.ENCODING nsA:RAS_O17.ENCODING 0 1
RXA nsA:RXA 1 unbounded
RXR nsA:RXR 1 1
RAS_O17.OBSERVATION nsA:RAS_O17.OBSERVATION 0 unbounded
CTI nsA:CTI 0 unbounded
Collapse Derivation Tree:
Collapse References:
nsA:RAS_O17.ORDER
