Documentation for Health Level Seven (HL7)
Definition Type: ComplexType
Name: RDE_O11.ORDER.CONTENT
Namespace: urn:hl7-org:v2xml
Containing Schema: RDE_O11.xsd
Abstract
Collapse XSD Schema Diagram:

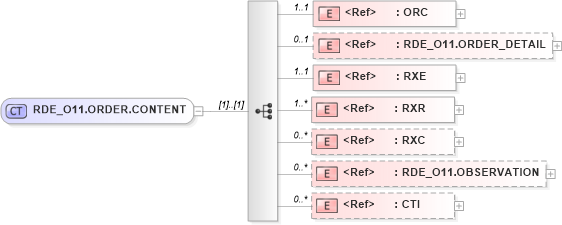

Drilldown into CTI in schema segments_xsd Drilldown into RDE_O11.OBSERVATION in schema rde_o11_xsd Drilldown into RXC in schema segments_xsd Drilldown into RXR in schema segments_xsd Drilldown into RXE in schema segments_xsd Drilldown into RDE_O11.ORDER_DETAIL in schema rde_o11_xsd Drilldown into ORC in schema segments_xsdXSD Diagram of RDE_O11.ORDER.CONTENT in schema rde_o11_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:complexType name="RDE_O11.ORDER.CONTENT">
    <xsd:sequence>
        <xsd:element ref="ORC" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="RDE_O11.ORDER_DETAIL" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="RXE" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="RXR" minOccurs="1" maxOccurs="unbounded" />
        <xsd:element ref="RXC" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="RDE_O11.OBSERVATION" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="CTI" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ORC nsA:ORC 1 1
RDE_O11.ORDER_DETAIL nsA:RDE_O11.ORDER_DETAIL 0 1
RXE nsA:RXE 1 1
RXR nsA:RXR 1 unbounded
RXC nsA:RXC 0 unbounded
RDE_O11.OBSERVATION nsA:RDE_O11.OBSERVATION 0 unbounded
CTI nsA:CTI 0 unbounded
Collapse Derivation Tree:
Collapse References:
nsA:RDE_O11.ORDER
