Documentation for Health Level Seven (HL7)
Definition Type: ComplexType
Name: RDS_O13.ORDER.CONTENT
Namespace: urn:hl7-org:v2xml
Containing Schema: RDS_O13.xsd
Abstract
Collapse XSD Schema Diagram:

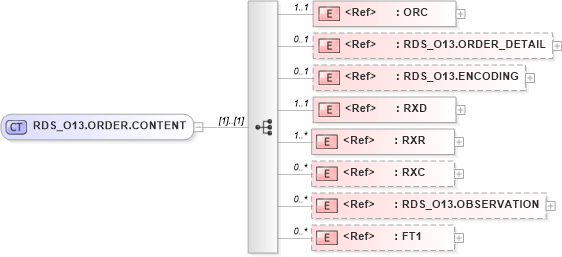

Drilldown into FT1 in schema segments_xsd Drilldown into RDS_O13.OBSERVATION in schema rds_o13_xsd Drilldown into RXC in schema segments_xsd Drilldown into RXR in schema segments_xsd Drilldown into RXD in schema segments_xsd Drilldown into RDS_O13.ENCODING in schema rds_o13_xsd Drilldown into RDS_O13.ORDER_DETAIL in schema rds_o13_xsd Drilldown into ORC in schema segments_xsdXSD Diagram of RDS_O13.ORDER.CONTENT in schema rds_o13_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:complexType name="RDS_O13.ORDER.CONTENT">
    <xsd:sequence>
        <xsd:element ref="ORC" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="RDS_O13.ORDER_DETAIL" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="RDS_O13.ENCODING" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="RXD" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="RXR" minOccurs="1" maxOccurs="unbounded" />
        <xsd:element ref="RXC" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="RDS_O13.OBSERVATION" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="FT1" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ORC nsA:ORC 1 1
RDS_O13.ORDER_DETAIL nsA:RDS_O13.ORDER_DETAIL 0 1
RDS_O13.ENCODING nsA:RDS_O13.ENCODING 0 1
RXD nsA:RXD 1 1
RXR nsA:RXR 1 unbounded
RXC nsA:RXC 0 unbounded
RDS_O13.OBSERVATION nsA:RDS_O13.OBSERVATION 0 unbounded
FT1 nsA:FT1 0 unbounded
Collapse Derivation Tree:
Collapse References:
nsA:RDS_O13.ORDER
