Documentation for Health Level Seven (HL7)
Definition Type: Element
Name: ROL
Namespace: urn:hl7-org:v2xml
Type: nsA:ROL.CONTENT
Containing Schema: segments.xsd
Abstract

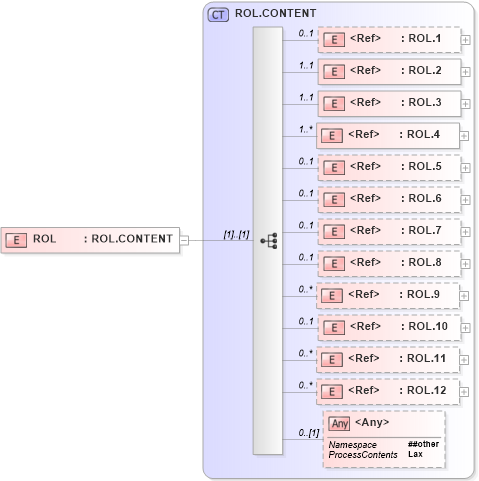

Collapse XSD Schema Diagram:
Drilldown into ROL.12 in schema fields_xsd Drilldown into ROL.11 in schema fields_xsd Drilldown into ROL.10 in schema fields_xsd Drilldown into ROL.9 in schema fields_xsd Drilldown into ROL.8 in schema fields_xsd Drilldown into ROL.7 in schema fields_xsd Drilldown into ROL.6 in schema fields_xsd Drilldown into ROL.5 in schema fields_xsd Drilldown into ROL.4 in schema fields_xsd Drilldown into ROL.3 in schema fields_xsd Drilldown into ROL.2 in schema fields_xsd Drilldown into ROL.1 in schema fields_xsd Drilldown into ROL.CONTENT in schema segments_xsdXSD Diagram of ROL in schema segments_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:element name="ROL" type="ROL.CONTENT" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ROL.1 nsA:ROL.1 0 1
ROL.2 nsA:ROL.2 1 1
ROL.3 nsA:ROL.3 1 1
ROL.4 nsA:ROL.4 1 unbounded
ROL.5 nsA:ROL.5 0 1
ROL.6 nsA:ROL.6 0 1
ROL.7 nsA:ROL.7 0 1
ROL.8 nsA:ROL.8 0 1
ROL.9 nsA:ROL.9 0 unbounded
ROL.10 nsA:ROL.10 0 1
ROL.11 nsA:ROL.11 0 unbounded
ROL.12 nsA:ROL.12 0 unbounded
<xs:any> Allowed namespace: '##other' 0 (1)
Collapse Derivation Tree:
