Documentation for Health Level Seven (HL7)
Definition Type: ComplexType
Name: RQA_I08.CONTENT
Namespace: urn:hl7-org:v2xml
Containing Schema: RQA_I08.xsd
Abstract
Collapse XSD Schema Diagram:

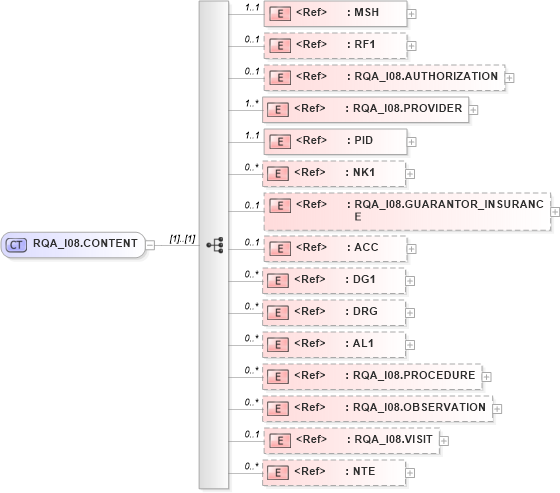

Drilldown into NTE in schema segments_xsd Drilldown into RQA_I08.VISIT in schema rqa_i08_xsd Drilldown into RQA_I08.OBSERVATION in schema rqa_i08_xsd Drilldown into RQA_I08.PROCEDURE in schema rqa_i08_xsd Drilldown into AL1 in schema segments_xsd Drilldown into DRG in schema segments_xsd Drilldown into DG1 in schema segments_xsd Drilldown into ACC in schema segments_xsd Drilldown into RQA_I08.GUARANTOR_INSURANCE in schema rqa_i08_xsd Drilldown into NK1 in schema segments_xsd Drilldown into PID in schema segments_xsd Drilldown into RQA_I08.PROVIDER in schema rqa_i08_xsd Drilldown into RQA_I08.AUTHORIZATION in schema rqa_i08_xsd Drilldown into RF1 in schema segments_xsd Drilldown into MSH in schema segments_xsdXSD Diagram of RQA_I08.CONTENT in schema rqa_i08_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:complexType name="RQA_I08.CONTENT">
    <xsd:sequence>
        <xsd:element ref="MSH" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="RF1" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="RQA_I08.AUTHORIZATION" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="RQA_I08.PROVIDER" minOccurs="1" maxOccurs="unbounded" />
        <xsd:element ref="PID" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="NK1" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="RQA_I08.GUARANTOR_INSURANCE" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="ACC" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="DG1" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="DRG" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="AL1" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="RQA_I08.PROCEDURE" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="RQA_I08.OBSERVATION" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="RQA_I08.VISIT" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="NTE" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MSH nsA:MSH 1 1
RF1 nsA:RF1 0 1
RQA_I08.AUTHORIZATION nsA:RQA_I08.AUTHORIZATION 0 1
RQA_I08.PROVIDER nsA:RQA_I08.PROVIDER 1 unbounded
PID nsA:PID 1 1
NK1 nsA:NK1 0 unbounded
RQA_I08.GUARANTOR_INSURANCE nsA:RQA_I08.GUARANTOR_INSURANCE 0 1
ACC nsA:ACC 0 1
DG1 nsA:DG1 0 unbounded
DRG nsA:DRG 0 unbounded
AL1 nsA:AL1 0 unbounded
RQA_I08.PROCEDURE nsA:RQA_I08.PROCEDURE 0 unbounded
RQA_I08.OBSERVATION nsA:RQA_I08.OBSERVATION 0 unbounded
RQA_I08.VISIT nsA:RQA_I08.VISIT 0 1
NTE nsA:NTE 0 unbounded
Collapse Derivation Tree:
Collapse References:
nsA:RQA_I08
