Documentation for Health Level Seven (HL7)
Definition Type: ComplexType
Name: RQC_I05.CONTENT
Namespace: urn:hl7-org:v2xml
Containing Schema: RQC_I05.xsd
Abstract

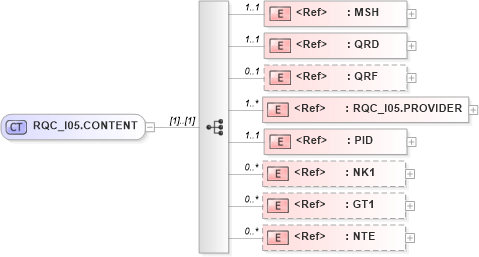

Collapse XSD Schema Diagram:
Drilldown into NTE in schema segments_xsd Drilldown into GT1 in schema segments_xsd Drilldown into NK1 in schema segments_xsd Drilldown into PID in schema segments_xsd Drilldown into RQC_I05.PROVIDER in schema rqc_i05_xsd Drilldown into QRF in schema segments_xsd Drilldown into QRD in schema segments_xsd Drilldown into MSH in schema segments_xsdXSD Diagram of RQC_I05.CONTENT in schema rqc_i05_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:complexType name="RQC_I05.CONTENT">
    <xsd:sequence>
        <xsd:element ref="MSH" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="QRD" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="QRF" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="RQC_I05.PROVIDER" minOccurs="1" maxOccurs="unbounded" />
        <xsd:element ref="PID" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="NK1" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="GT1" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="NTE" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MSH nsA:MSH 1 1
QRD nsA:QRD 1 1
QRF nsA:QRF 0 1
RQC_I05.PROVIDER nsA:RQC_I05.PROVIDER 1 unbounded
PID nsA:PID 1 1
NK1 nsA:NK1 0 unbounded
GT1 nsA:GT1 0 unbounded
NTE nsA:NTE 0 unbounded
Collapse Derivation Tree:
Collapse References:
nsA:RQC_I05
