Documentation for Health Level Seven (HL7)
Definition Type: ComplexType
Name: SIU_S12.CONTENT
Namespace: urn:hl7-org:v2xml
Containing Schema: SIU_S12.xsd
Abstract

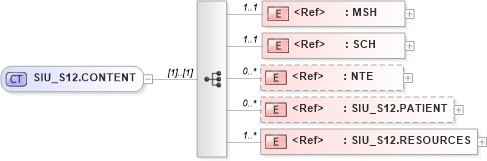

Collapse XSD Schema Diagram:
Drilldown into SIU_S12.RESOURCES in schema siu_s12_xsd Drilldown into SIU_S12.PATIENT in schema siu_s12_xsd Drilldown into NTE in schema segments_xsd Drilldown into SCH in schema segments_xsd Drilldown into MSH in schema segments_xsdXSD Diagram of SIU_S12.CONTENT in schema siu_s12_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:complexType name="SIU_S12.CONTENT">
    <xsd:sequence>
        <xsd:element ref="MSH" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="SCH" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="NTE" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="SIU_S12.PATIENT" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="SIU_S12.RESOURCES" minOccurs="1" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MSH nsA:MSH 1 1
SCH nsA:SCH 1 1
NTE nsA:NTE 0 unbounded
SIU_S12.PATIENT nsA:SIU_S12.PATIENT 0 unbounded
SIU_S12.RESOURCES nsA:SIU_S12.RESOURCES 1 unbounded
Collapse Derivation Tree:
Collapse References:
nsA:SIU_S12
