Documentation for Health Level Seven (HL7)
Definition Type: ComplexType
Name: VXU_V04.ORDER.CONTENT
Namespace: urn:hl7-org:v2xml
Containing Schema: VXU_V04.xsd
Abstract

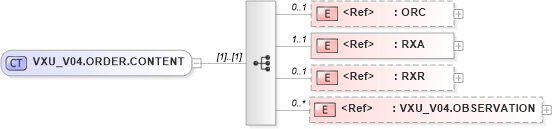

Collapse XSD Schema Diagram:
Drilldown into VXU_V04.OBSERVATION in schema vxu_v04_xsd Drilldown into RXR in schema segments_xsd Drilldown into RXA in schema segments_xsd Drilldown into ORC in schema segments_xsdXSD Diagram of VXU_V04.ORDER.CONTENT in schema vxu_v04_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:complexType name="VXU_V04.ORDER.CONTENT">
    <xsd:sequence>
        <xsd:element ref="ORC" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="RXA" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="RXR" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="VXU_V04.OBSERVATION" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ORC nsA:ORC 0 1
RXA nsA:RXA 1 1
RXR nsA:RXR 0 1
VXU_V04.OBSERVATION nsA:VXU_V04.OBSERVATION 0 unbounded
Collapse Derivation Tree:
Collapse References:
nsA:VXU_V04.ORDER
