Documentation for Health Level Seven (HL7)
Definition Type: ComplexType
Name: VXX_V02.CONTENT
Namespace: urn:hl7-org:v2xml
Containing Schema: VXX_V02.xsd
Abstract
Collapse XSD Schema Diagram:

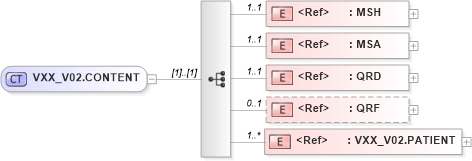

Drilldown into VXX_V02.PATIENT in schema vxx_v02_xsd Drilldown into QRF in schema segments_xsd Drilldown into QRD in schema segments_xsd Drilldown into MSA in schema segments_xsd Drilldown into MSH in schema segments_xsdXSD Diagram of VXX_V02.CONTENT in schema vxx_v02_xsd (Health Level Seven (HL7))
Collapse XSD Schema Code:
<xsd:complexType name="VXX_V02.CONTENT">
    <xsd:sequence>
        <xsd:element ref="MSH" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="MSA" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="QRD" minOccurs="1" maxOccurs="1" />
        <xsd:element ref="QRF" minOccurs="0" maxOccurs="1" />
        <xsd:element ref="VXX_V02.PATIENT" minOccurs="1" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
MSH nsA:MSH 1 1
MSA nsA:MSA 1 1
QRD nsA:QRD 1 1
QRF nsA:QRF 0 1
VXX_V02.PATIENT nsA:VXX_V02.PATIENT 1 unbounded
Collapse Derivation Tree:
Collapse References:
nsA:VXX_V02
