Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: AdditionalItemType
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: ResumeAdditionalItems.xsd
Abstract

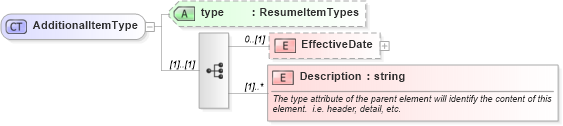

Collapse XSD Schema Diagram:
Drilldown into Description in schema resumeadditionalitems_xsd Drilldown into EffectiveDate in schema resumeadditionalitems_xsd Drilldown into type in schema resumeadditionalitems_xsdXSD Diagram of AdditionalItemType in schema resumeadditionalitems_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="AdditionalItemType">
    <xsd:sequence>
        <xsd:element name="EffectiveDate" minOccurs="0">
            <xsd:complexType>
                <xsd:sequence>
                    <xsd:element name="StartDate" type="FlexibleDatesType" minOccurs="0" />
                    <xsd:element name="EndDate" type="FlexibleDatesType" minOccurs="0" />
                </xsd:sequence>
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="Description" type="xsd:string" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>The type attribute of the parent element will identify the content of this element.  i.e. header, detail, etc.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
    <xsd:attribute name="type" type="ResumeItemTypes" use="optional" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EffectiveDate hr:EffectiveDate 0 (1)
Description hr:Description (1) unbounded
Collapse Child Attributes:
Name Type Default Value Use
type hr:type Optional
Collapse Derivation Tree:
Collapse References:
hr:ResumeAdditionalItem
