Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: AlternateScript
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: PersonName.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

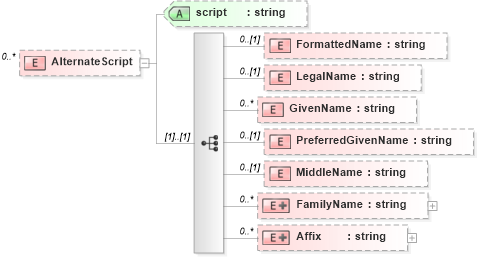

Collapse XSD Schema Diagram:
Drilldown into Affix in schema personname_xsd Drilldown into FamilyName in schema personname_xsd Drilldown into MiddleName in schema personname_xsd Drilldown into PreferredGivenName in schema personname_xsd Drilldown into GivenName in schema personname_xsd Drilldown into LegalName in schema personname_xsd Drilldown into FormattedName in schema personname_xsd Drilldown into script in schema personname_xsdXSD Diagram of AlternateScript in schema personname_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="AlternateScript" minOccurs="0" maxOccurs="unbounded">
    <xsd:complexType>
        <xsd:sequence>
            <xsd:element name="FormattedName" type="xsd:string" minOccurs="0" />
            <xsd:element name="LegalName" type="xsd:string" minOccurs="0" />
            <xsd:element name="GivenName" type="xsd:string" minOccurs="0" maxOccurs="unbounded" />
            <xsd:element name="PreferredGivenName" type="xsd:string" minOccurs="0" />
            <xsd:element name="MiddleName" type="xsd:string" minOccurs="0" />
            <xsd:element name="FamilyName" minOccurs="0" maxOccurs="unbounded">
                <xsd:complexType>
                    <xsd:simpleContent>
                        <xsd:extension base="xsd:string">
                            <xsd:attribute name="primary">
                                <xsd:simpleType>
                                    <xsd:restriction base="xsd:string">
                                        <xsd:enumeration value="true" />
                                        <xsd:enumeration value="false" />
                                        <xsd:enumeration value="undefined" />
                                    </xsd:restriction>
                                </xsd:simpleType>
                            </xsd:attribute>
                            <xsd:attribute name="prefix" type="xsd:string" />
                        </xsd:extension>
                    </xsd:simpleContent>
                </xsd:complexType>
            </xsd:element>
            <xsd:element name="Affix" minOccurs="0" maxOccurs="unbounded">
                <xsd:complexType>
                    <xsd:simpleContent>
                        <xsd:extension base="xsd:string">
                            <xsd:attribute name="type" use="required">
                                <xsd:simpleType>
                                    <xsd:restriction base="xsd:string">
                                        <xsd:enumeration value="aristocraticTitle" />
                                        <xsd:enumeration value="formOfAddress" />
                                        <xsd:enumeration value="generation" />
                                        <xsd:enumeration value="qualification" />
                                    </xsd:restriction>
                                </xsd:simpleType>
                            </xsd:attribute>
                        </xsd:extension>
                    </xsd:simpleContent>
                </xsd:complexType>
            </xsd:element>
        </xsd:sequence>
        <xsd:attribute name="script" type="xsd:string" />
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
FormattedName hr:FormattedName 0 (1)
LegalName hr:LegalName 0 (1)
GivenName hr:GivenName 0 unbounded
PreferredGivenName hr:PreferredGivenName 0 (1)
MiddleName hr:MiddleName 0 (1)
FamilyName hr:FamilyName 0 unbounded
Affix hr:Affix 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
script hr:script (Optional)
