Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: ApplicationInfo
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: NewHire.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract

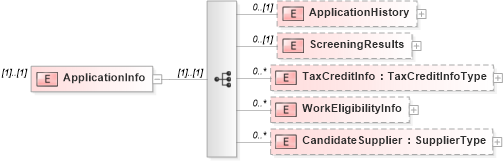

Collapse XSD Schema Diagram:
Drilldown into CandidateSupplier in schema newhire_xsd Drilldown into WorkEligibilityInfo in schema newhire_xsd Drilldown into TaxCreditInfo in schema newhire_xsd Drilldown into ScreeningResults in schema newhire_xsd Drilldown into ApplicationHistory in schema newhire_xsdXSD Diagram of ApplicationInfo in schema newhire_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="ApplicationInfo">
    <xsd:complexType>
        <xsd:sequence>
            <xsd:element name="ApplicationHistory" minOccurs="0">
                <xsd:complexType>
                    <xsd:sequence>
                        <xsd:element name="HiringProcessActivity" type="ActivityType" maxOccurs="unbounded" />
                        <xsd:element name="Comments" type="xsd:string" minOccurs="0" />
                    </xsd:sequence>
                </xsd:complexType>
            </xsd:element>
            <xsd:element name="ScreeningResults" minOccurs="0">
                <xsd:complexType>
                    <xsd:sequence>
                        <xsd:element name="AssessmentResult" type="AssessmentResultType" minOccurs="0" maxOccurs="unbounded" />
                        <!--				<xsd:element name="BackgroundCheckResults" type="ScreeningReportType" minOccurs="0" maxOccurs="unbounded"/>-->
                        <xsd:element name="MedicalResults" type="xsd:string" minOccurs="0" />
                    </xsd:sequence>
                </xsd:complexType>
            </xsd:element>
            <xsd:element name="TaxCreditInfo" minOccurs="0" maxOccurs="unbounded" type="TaxCreditInfoType" />
            <xsd:element name="WorkEligibilityInfo" minOccurs="0" maxOccurs="unbounded">
                <xsd:complexType>
                    <xsd:sequence>
                        <xsd:element name="FormId" type="EntityIdType" minOccurs="0" />
                        <xsd:element name="DocumentId" type="EntityIdType" minOccurs="0" />
                        <xsd:element name="DocumentName" type="xsd:string" minOccurs="0" />
                        <xsd:element name="VerificationInfo" minOccurs="0">
                            <xsd:complexType>
                                <xsd:sequence>
                                    <xsd:element name="OrganizationName" type="xsd:string" minOccurs="0" />
                                    <xsd:element name="Status" type="xsd:string" minOccurs="0" />
                                    <xsd:element name="Date" type="LocalDateType" minOccurs="0" />
                                    <xsd:element ref="PersonName" minOccurs="0" />
                                    <xsd:element name="PersonId" type="EntityIdType" minOccurs="0" />
                                </xsd:sequence>
                            </xsd:complexType>
                        </xsd:element>
                        <xsd:element name="IssuingAuthority" type="xsd:string" minOccurs="0" />
                        <xsd:element name="IsDocumentSignedByCandidate" type="xsd:boolean" minOccurs="0" />
                        <xsd:element ref="SupportingMaterials" minOccurs="0" maxOccurs="unbounded" />
                        <xsd:element name="Comments" type="xsd:string" minOccurs="0" />
                    </xsd:sequence>
                </xsd:complexType>
            </xsd:element>
            <xsd:element name="CandidateSupplier" type="SupplierType" minOccurs="0" maxOccurs="unbounded" />
        </xsd:sequence>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplicationHistory hr:ApplicationHistory 0 (1)
ScreeningResults hr:ScreeningResults 0 (1)
TaxCreditInfo hr:TaxCreditInfo 0 unbounded
WorkEligibilityInfo hr:WorkEligibilityInfo 0 unbounded
CandidateSupplier hr:CandidateSupplier 0 unbounded
