Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: ApprovalInfoType
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: TimeCard.xsd
Abstract

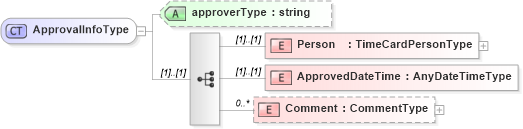

Collapse XSD Schema Diagram:
Drilldown into Comment in schema timecard_xsd Drilldown into ApprovedDateTime in schema timecard_xsd Drilldown into Person in schema timecard_xsd Drilldown into approverType in schema timecard_xsdXSD Diagram of ApprovalInfoType in schema timecard_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="ApprovalInfoType">
    <xsd:sequence>
        <xsd:element name="Person" type="TimeCardPersonType" />
        <xsd:element name="ApprovedDateTime" type="AnyDateTimeType" />
        <xsd:element name="Comment" type="CommentType" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
    <xsd:attribute name="approverType" type="xsd:string" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Person hr:Person (1) (1)
ApprovedDateTime hr:ApprovedDateTime (1) (1)
Comment hr:Comment 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
approverType hr:approverType (Optional)
Collapse Derivation Tree:
Collapse References:
hr:ApprovalInfo, hr:ApprovalInfo, hr:ApprovalInfo, hr:ApprovalInfo, hr:ApprovalInfo, hr:ApprovalInfo, hr:ApprovalInfo
