Definition Type: ComplexType
Name: AssessmentBiologicalDescriptorsType
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: AssessmentTypes.xsd
Abstract
Collapse XSD Schema Diagram:

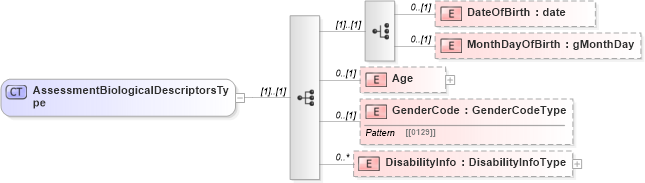

Drilldown into DisabilityInfo in schema assessmenttypes_xsd Drilldown into GenderCode in schema assessmenttypes_xsd Drilldown into Age in schema assessmenttypes_xsd Drilldown into MonthDayOfBirth in schema assessmenttypes_xsd Drilldown into DateOfBirth in schema assessmenttypes_xsdXSD Diagram of AssessmentBiologicalDescriptorsType in schema assessmenttypes_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="AssessmentBiologicalDescriptorsType">
    <xsd:sequence>
        <xsd:choice>
            <xsd:element name="DateOfBirth" type="xsd:date" minOccurs="0" />
            <!-- was LocalDateNkNaType -->
            <xsd:element name="MonthDayOfBirth" type="xsd:gMonthDay" minOccurs="0" />
            <!-- made into xsd type -->
        </xsd:choice>
        <xsd:element name="Age" minOccurs="0">
            <xsd:complexType>
                <xsd:choice>
                    <xsd:element name="AgeNumeric" type="xsd:nonNegativeInteger" />
                    <xsd:element name="AgeBand" />
                </xsd:choice>
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="GenderCode" type="GenderCodeType" minOccurs="0" />
        <xsd:element name="DisabilityInfo" type="DisabilityInfoType" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
DateOfBirth hr:DateOfBirth 0 (1)
MonthDayOfBirth hr:MonthDayOfBirth 0 (1)
Age hr:Age 0 (1)
GenderCode hr:GenderCode 0 (1)
DisabilityInfo hr:DisabilityInfo 0 unbounded
Collapse Derivation Tree:
Collapse References:
hr:BiologicalDescriptors
