Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: AssessmentCompetencyReferenceType
Namespace: http://ns.hr-xml.org/2007-04-15
Type: hr:SpecifiedCompetencyReferenceType
Containing Schema: AssessmentTypes.xsd
Abstract

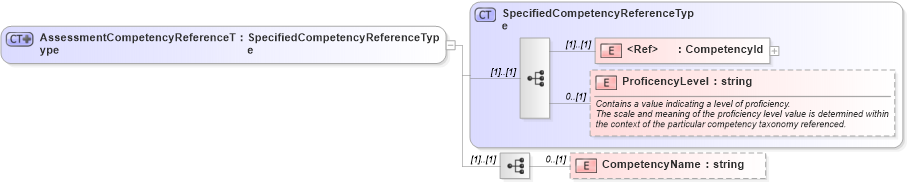

Collapse XSD Schema Diagram:
Drilldown into CompetencyName in schema assessmenttypes_xsd Drilldown into ProficencyLevel in schema competencytypes_xsd Drilldown into CompetencyId in schema competencytypes_xsd Drilldown into SpecifiedCompetencyReferenceType in schema competencytypes_xsdXSD Diagram of AssessmentCompetencyReferenceType in schema assessmenttypes_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="AssessmentCompetencyReferenceType">
    <xsd:complexContent>
        <xsd:extension base="SpecifiedCompetencyReferenceType">
            <xsd:sequence>
                <xsd:element name="CompetencyName" type="xsd:string" minOccurs="0" />
            </xsd:sequence>
        </xsd:extension>
    </xsd:complexContent>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CompetencyId hr:CompetencyId (1) (1)
ProficencyLevel hr:ProficencyLevel 0 (1)
CompetencyName hr:CompetencyName 0 (1)
Collapse Derivation Tree:
Collapse References:
hr:CompetencyAssessed, hr:CompetencyAssessed
