Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: AssessmentOrderAcknowledgement
Namespace: http://ns.hr-xml.org/2007-04-15
Type: hr:AssessmentOrderAcknowledgementType
Containing Schema: AssessmentOrderAcknowledgement.xsd
Abstract
Documentation:
Root element for AssessmentOrderAcknowledgment schema, which is designed to hold data necessary to acknowledge an assessment request.

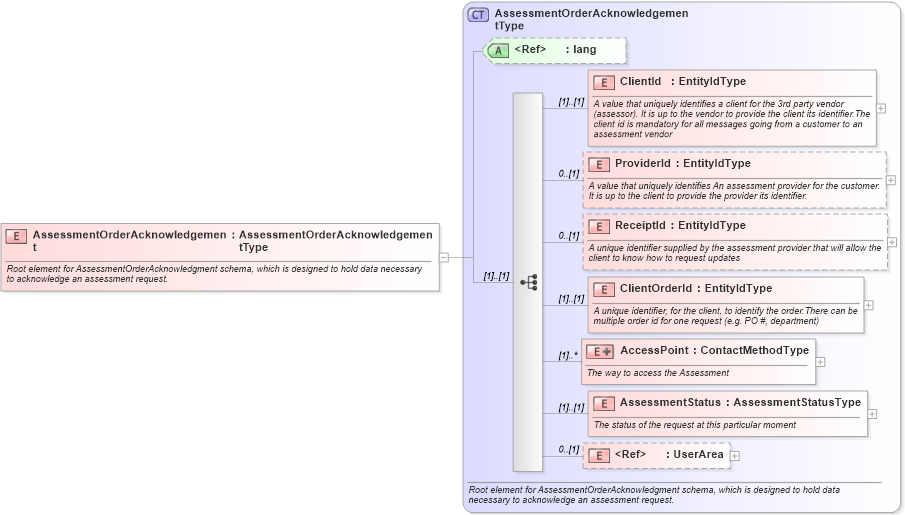

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema userarea_xsd Drilldown into AssessmentStatus in schema assessmentorderacknowledgement_xsd Drilldown into AccessPoint in schema assessmentorderacknowledgement_xsd Drilldown into ClientOrderId in schema assessmentorderacknowledgement_xsd Drilldown into ReceiptId in schema assessmentorderacknowledgement_xsd Drilldown into ProviderId in schema assessmentorderacknowledgement_xsd Drilldown into ClientId in schema assessmentorderacknowledgement_xsd Drilldown into lang in schema xml_xsd Drilldown into AssessmentOrderAcknowledgementType in schema assessmentorderacknowledgement_xsdXSD Diagram of AssessmentOrderAcknowledgement in schema assessmentorderacknowledgement_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="AssessmentOrderAcknowledgement" type="AssessmentOrderAcknowledgementType">
    <xsd:annotation>
        <xsd:documentation>Root element for AssessmentOrderAcknowledgment schema, which is designed to hold data necessary to acknowledge an assessment request.</xsd:documentation>
    </xsd:annotation>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ClientId hr:ClientId (1) (1)
ProviderId hr:ProviderId 0 (1)
ReceiptId hr:ReceiptId 0 (1)
ClientOrderId hr:ClientOrderId (1) (1)
AccessPoint hr:AccessPoint (1) unbounded
AssessmentStatus hr:AssessmentStatus (1) (1)
UserArea hr:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
lang nsA:lang (Optional)
Collapse Derivation Tree:
