Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: AssessmentResultsType
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: AssessmentResult.xsd
Abstract
Documentation:
Root element for AssessmentResults type, which is designed to hold data necessary to convey information on assessment results

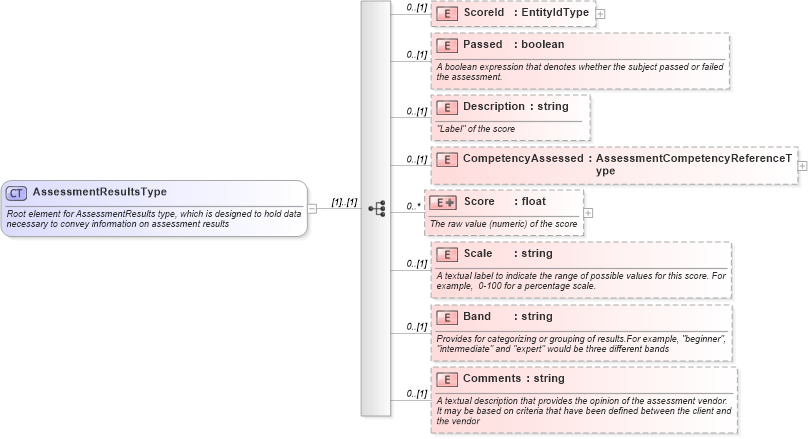

Collapse XSD Schema Diagram:
Drilldown into Comments in schema assessmentresult_xsd Drilldown into Band in schema assessmentresult_xsd Drilldown into Scale in schema assessmentresult_xsd Drilldown into Score in schema assessmentresult_xsd Drilldown into CompetencyAssessed in schema assessmentresult_xsd Drilldown into Description in schema assessmentresult_xsd Drilldown into Passed in schema assessmentresult_xsd Drilldown into ScoreId in schema assessmentresult_xsdXSD Diagram of AssessmentResultsType in schema assessmentresult_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="AssessmentResultsType">
    <xsd:annotation>
        <xsd:documentation>Root element for AssessmentResults type, which is designed to hold data necessary to convey information on assessment results</xsd:documentation>
    </xsd:annotation>
    <xsd:sequence>
        <xsd:element name="ScoreId" type="EntityIdType" minOccurs="0" />
        <xsd:element name="Passed" type="xsd:boolean" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>A boolean expression that denotes whether the subject passed or failed the assessment.</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="Description" type="xsd:string" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>"Label" of the score</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="CompetencyAssessed" type="AssessmentCompetencyReferenceType" minOccurs="0" />
        <xsd:element name="Score" minOccurs="0" maxOccurs="unbounded">
            <xsd:annotation>
                <xsd:documentation>The raw value (numeric) of the score</xsd:documentation>
            </xsd:annotation>
            <xsd:complexType>
                <xsd:simpleContent>
                    <xsd:extension base="xsd:float">
                        <xsd:attribute name="type" type="AssessmentResultTypes" use="required" />
                    </xsd:extension>
                </xsd:simpleContent>
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="Scale" type="xsd:string" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>A textual label to indicate the range of possible values for this score. For example,  0-100 for a percentage scale. </xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="Band" type="xsd:string" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>Provides for categorizing or grouping of results.For example, "beginner", "intermediate" and "expert" would be three different bands</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
        <xsd:element name="Comments" type="xsd:string" minOccurs="0">
            <xsd:annotation>
                <xsd:documentation>A textual description that provides the opinion of the assessment vendor. It may be based on criteria that have been defined between the client and the vendor</xsd:documentation>
            </xsd:annotation>
        </xsd:element>
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ScoreId hr:ScoreId 0 (1)
Passed hr:Passed 0 (1)
Description hr:Description 0 (1)
CompetencyAssessed hr:CompetencyAssessed 0 (1)
Score hr:Score 0 unbounded
Scale hr:Scale 0 (1)
Band hr:Band 0 (1)
Comments hr:Comments 0 (1)
Collapse Derivation Tree:
Collapse References:
hr:DetailResult, hr:OverallResult
