Definition Type: Element
Name: AssignmentDateRange
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: Assignment.xsd
MinOccurs (1)
MaxOccurs (1)
Abstract
Collapse XSD Schema Diagram:

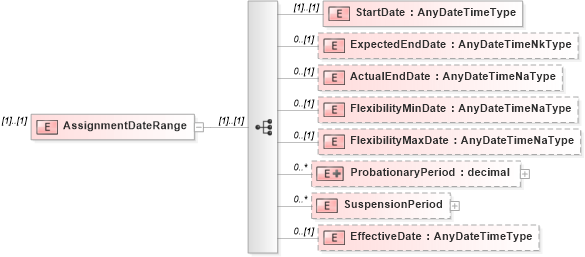

Drilldown into EffectiveDate in schema assignment_xsd Drilldown into SuspensionPeriod in schema assignment_xsd Drilldown into ProbationaryPeriod in schema assignment_xsd Drilldown into FlexibilityMaxDate in schema assignment_xsd Drilldown into FlexibilityMinDate in schema assignment_xsd Drilldown into ActualEndDate in schema assignment_xsd Drilldown into ExpectedEndDate in schema assignment_xsd Drilldown into StartDate in schema assignment_xsdXSD Diagram of AssignmentDateRange in schema assignment_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="AssignmentDateRange">
    <xsd:complexType>
        <xsd:sequence>
            <xsd:element name="StartDate" type="AnyDateTimeType" />
            <xsd:element name="ExpectedEndDate" type="AnyDateTimeNkType" minOccurs="0" />
            <xsd:element name="ActualEndDate" type="AnyDateTimeNaType" minOccurs="0" />
            <xsd:element name="FlexibilityMinDate" type="AnyDateTimeNaType" minOccurs="0" />
            <xsd:element name="FlexibilityMaxDate" type="AnyDateTimeNaType" minOccurs="0" />
            <xsd:element name="ProbationaryPeriod" minOccurs="0" maxOccurs="unbounded">
                <xsd:complexType>
                    <xsd:simpleContent>
                        <xsd:extension base="xsd:decimal">
                            <xsd:attribute name="unitOfMeasure" type="xsd:string" />
                        </xsd:extension>
                    </xsd:simpleContent>
                </xsd:complexType>
            </xsd:element>
            <xsd:element name="SuspensionPeriod" minOccurs="0" maxOccurs="unbounded">
                <xsd:complexType>
                    <xsd:sequence>
                        <xsd:element name="StartDate" type="AnyDateTimeType" />
                        <xsd:element name="EndDate" type="AnyDateTimeNkType" />
                        <xsd:element name="Comments" type="xsd:string" minOccurs="0" />
                    </xsd:sequence>
                </xsd:complexType>
            </xsd:element>
            <xsd:element name="EffectiveDate" type="AnyDateTimeType" minOccurs="0" />
        </xsd:sequence>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
StartDate hr:StartDate (1) (1)
ExpectedEndDate hr:ExpectedEndDate 0 (1)
ActualEndDate hr:ActualEndDate 0 (1)
FlexibilityMinDate hr:FlexibilityMinDate 0 (1)
FlexibilityMaxDate hr:FlexibilityMaxDate 0 (1)
ProbationaryPeriod hr:ProbationaryPeriod 0 unbounded
SuspensionPeriod hr:SuspensionPeriod 0 unbounded
EffectiveDate hr:EffectiveDate 0 (1)
