Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: BusyPeriodInfo
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: StaffingPositionHeader.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

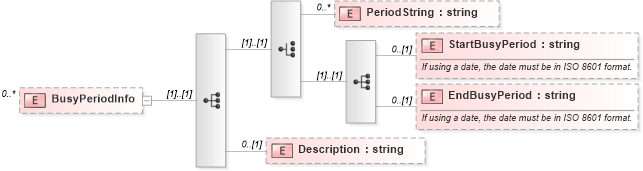

Collapse XSD Schema Diagram:
Drilldown into Description in schema staffingpositionheader_xsd Drilldown into EndBusyPeriod in schema staffingpositionheader_xsd Drilldown into StartBusyPeriod in schema staffingpositionheader_xsd Drilldown into PeriodString in schema staffingpositionheader_xsdXSD Diagram of BusyPeriodInfo in schema staffingpositionheader_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="BusyPeriodInfo" minOccurs="0" maxOccurs="unbounded">
    <xsd:complexType>
        <xsd:sequence>
            <xsd:choice>
                <xsd:element name="PeriodString" type="xsd:string" minOccurs="0" maxOccurs="unbounded" />
                <xsd:sequence>
                    <xsd:element name="StartBusyPeriod" type="xsd:string" minOccurs="0">
                        <xsd:annotation>
                            <xsd:documentation>If using a date, the date must be in ISO 8601 format.</xsd:documentation>
                        </xsd:annotation>
                    </xsd:element>
                    <xsd:element name="EndBusyPeriod" type="xsd:string" minOccurs="0">
                        <xsd:annotation>
                            <xsd:documentation>If using a date, the date must be in ISO 8601 format.</xsd:documentation>
                        </xsd:annotation>
                    </xsd:element>
                </xsd:sequence>
            </xsd:choice>
            <xsd:element name="Description" type="xsd:string" minOccurs="0" />
        </xsd:sequence>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
PeriodString hr:PeriodString 0 unbounded
StartBusyPeriod hr:StartBusyPeriod 0 (1)
EndBusyPeriod hr:EndBusyPeriod 0 (1)
Description hr:Description 0 (1)
