Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: Charges
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: Screenings.xsd
MinOccurs (1)
MaxOccurs unbounded
Abstract
Collapse XSD Schema Diagram:

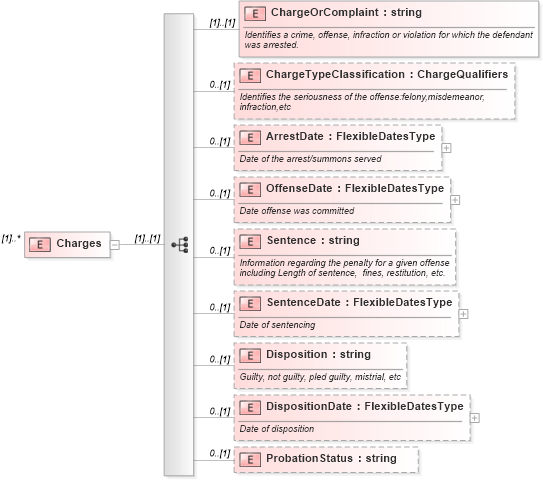

Drilldown into ProbationStatus in schema screenings_xsd Drilldown into DispositionDate in schema screenings_xsd Drilldown into Disposition in schema screenings_xsd Drilldown into SentenceDate in schema screenings_xsd Drilldown into Sentence in schema screenings_xsd Drilldown into OffenseDate in schema screenings_xsd Drilldown into ArrestDate in schema screenings_xsd Drilldown into ChargeTypeClassification in schema screenings_xsd Drilldown into ChargeOrComplaint in schema screenings_xsdXSD Diagram of Charges in schema screenings_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="Charges" maxOccurs="unbounded">
    <xsd:complexType>
        <xsd:sequence>
            <xsd:element name="ChargeOrComplaint" type="xsd:string">
                <xsd:annotation>
                    <xsd:documentation>Identifies a crime, offense, infraction or violation for which the defendant was arrested.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="ChargeTypeClassification" type="ChargeQualifiers" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation>Identifies the seriousness of the offense:felony,misdemeanor, infraction,etc</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="ArrestDate" type="FlexibleDatesType" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation>Date of the arrest/summons served</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="OffenseDate" type="FlexibleDatesType" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation>Date offense was committed</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="Sentence" type="xsd:string" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation>Information regarding the penalty for a given offense
including Length of sentence,  fines, restitution, etc.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="SentenceDate" type="FlexibleDatesType" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation>Date of sentencing</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="Disposition" type="xsd:string" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation>Guilty, not guilty, pled guilty, mistrial, etc</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="DispositionDate" type="FlexibleDatesType" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation>Date of disposition</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
            <xsd:element name="ProbationStatus" type="xsd:string" minOccurs="0" />
        </xsd:sequence>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ChargeOrComplaint hr:ChargeOrComplaint (1) (1)
ChargeTypeClassification hr:ChargeTypeClassification 0 (1)
ArrestDate hr:ArrestDate 0 (1)
OffenseDate hr:OffenseDate 0 (1)
Sentence hr:Sentence 0 (1)
SentenceDate hr:SentenceDate 0 (1)
Disposition hr:Disposition 0 (1)
DispositionDate hr:DispositionDate 0 (1)
ProbationStatus hr:ProbationStatus 0 (1)
