Definition Type: ComplexType
Name: CompetencyType
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: Competencies.xsd
Abstract

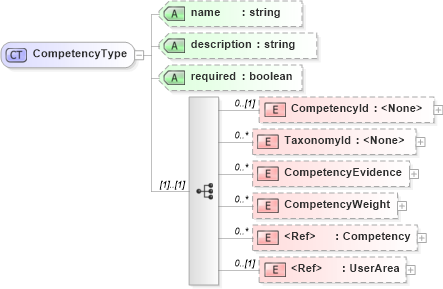

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema userarea_xsd Drilldown into Competency in schema competencies_xsd Drilldown into CompetencyWeight in schema competencies_xsd Drilldown into CompetencyEvidence in schema competencies_xsd Drilldown into TaxonomyId in schema competencies_xsd Drilldown into CompetencyId in schema competencies_xsd Drilldown into required in schema competencies_xsd Drilldown into description in schema competencies_xsd Drilldown into name in schema competencies_xsdXSD Diagram of CompetencyType in schema competencies_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="CompetencyType">
    <xsd:sequence>
        <xsd:element name="CompetencyId" minOccurs="0">
            <xsd:complexType>
                <xsd:attribute name="id" type="xsd:string" use="required" />
                <xsd:attribute name="idOwner" type="xsd:string" />
                <xsd:attribute name="description" type="xsd:string" />
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="TaxonomyId" minOccurs="0" maxOccurs="unbounded">
            <xsd:complexType>
                <xsd:attribute name="id" type="xsd:string" use="required" />
                <xsd:attribute name="idOwner" type="xsd:string" />
                <xsd:attribute name="description" type="xsd:string" />
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="CompetencyEvidence" minOccurs="0" maxOccurs="unbounded">
            <xsd:complexType>
                <xsd:sequence>
                    <xsd:element name="EvidenceId" minOccurs="0">
                        <xsd:complexType>
                            <xsd:attribute name="id" type="xsd:string" use="required" />
                            <xsd:attribute name="idOwner" type="xsd:string" />
                            <xsd:attribute name="description" type="xsd:string" />
                        </xsd:complexType>
                    </xsd:element>
                    <xsd:choice>
                        <xsd:element ref="NumericValue" />
                        <xsd:element ref="StringValue" />
                    </xsd:choice>
                    <xsd:element ref="SupportingInformation" minOccurs="0" maxOccurs="unbounded" />
                </xsd:sequence>
                <xsd:attribute name="dateOfIncident" type="AnyDateTimeType" />
                <xsd:attribute name="name" type="xsd:string" />
                <xsd:attribute name="typeDescription" type="xsd:string" />
                <xsd:attribute name="expirationDate" type="AnyDateTimeType" />
                <xsd:attribute name="typeId" type="xsd:string" />
                <xsd:attribute name="required" type="xsd:boolean" />
                <xsd:attribute name="lastUsed" type="AnyDateTimeType" />
            </xsd:complexType>
        </xsd:element>
        <xsd:element name="CompetencyWeight" minOccurs="0" maxOccurs="unbounded">
            <xsd:complexType>
                <xsd:sequence>
                    <xsd:choice>
                        <xsd:element ref="NumericValue" />
                        <xsd:element ref="StringValue" />
                    </xsd:choice>
                    <xsd:element ref="SupportingInformation" minOccurs="0" maxOccurs="unbounded" />
                </xsd:sequence>
                <xsd:attribute name="type" type="ExtendedWeightType" />
            </xsd:complexType>
        </xsd:element>
        <xsd:element ref="Competency" minOccurs="0" maxOccurs="unbounded" />
        <xsd:element ref="UserArea" minOccurs="0" />
    </xsd:sequence>
    <xsd:attribute name="name" type="xsd:string" />
    <xsd:attribute name="description" type="xsd:string" />
    <xsd:attribute name="required" type="xsd:boolean" />
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
CompetencyId hr:CompetencyId 0 (1)
TaxonomyId hr:TaxonomyId 0 unbounded
CompetencyEvidence hr:CompetencyEvidence 0 unbounded
CompetencyWeight hr:CompetencyWeight 0 unbounded
Competency hr:Competency 0 unbounded
UserArea hr:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
name hr:name (Optional)
description hr:description (Optional)
required hr:required (Optional)
Collapse Derivation Tree:
Collapse References:
hr:Competency
