Definition Type: ComplexType
Name: ConfirmationType
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: BackgroundReports.xsd
Abstract
Collapse XSD Schema Diagram:

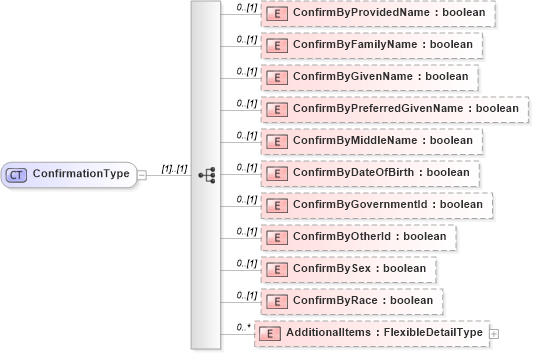

Drilldown into AdditionalItems in schema backgroundreports_xsd Drilldown into ConfirmByRace in schema backgroundreports_xsd Drilldown into ConfirmBySex in schema backgroundreports_xsd Drilldown into ConfirmByOtherId in schema backgroundreports_xsd Drilldown into ConfirmByGovernmentId in schema backgroundreports_xsd Drilldown into ConfirmByDateOfBirth in schema backgroundreports_xsd Drilldown into ConfirmByMiddleName in schema backgroundreports_xsd Drilldown into ConfirmByPreferredGivenName in schema backgroundreports_xsd Drilldown into ConfirmByGivenName in schema backgroundreports_xsd Drilldown into ConfirmByFamilyName in schema backgroundreports_xsd Drilldown into ConfirmByProvidedName in schema backgroundreports_xsdXSD Diagram of ConfirmationType in schema backgroundreports_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:complexType name="ConfirmationType">
    <xsd:sequence>
        <xsd:element name="ConfirmByProvidedName" type="xsd:boolean" minOccurs="0" />
        <xsd:element name="ConfirmByFamilyName" type="xsd:boolean" minOccurs="0" />
        <xsd:element name="ConfirmByGivenName" type="xsd:boolean" minOccurs="0" />
        <xsd:element name="ConfirmByPreferredGivenName" type="xsd:boolean" minOccurs="0" />
        <xsd:element name="ConfirmByMiddleName" type="xsd:boolean" minOccurs="0" />
        <xsd:element name="ConfirmByDateOfBirth" type="xsd:boolean" minOccurs="0" />
        <xsd:element name="ConfirmByGovernmentId" type="xsd:boolean" minOccurs="0" />
        <xsd:element name="ConfirmByOtherId" type="xsd:boolean" minOccurs="0" />
        <xsd:element name="ConfirmBySex" type="xsd:boolean" minOccurs="0" />
        <xsd:element name="ConfirmByRace" type="xsd:boolean" minOccurs="0" />
        <xsd:element name="AdditionalItems" type="FlexibleDetailType" minOccurs="0" maxOccurs="unbounded" />
    </xsd:sequence>
</xsd:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ConfirmByProvidedName hr:ConfirmByProvidedName 0 (1)
ConfirmByFamilyName hr:ConfirmByFamilyName 0 (1)
ConfirmByGivenName hr:ConfirmByGivenName 0 (1)
ConfirmByPreferredGivenName hr:ConfirmByPreferredGivenName 0 (1)
ConfirmByMiddleName hr:ConfirmByMiddleName 0 (1)
ConfirmByDateOfBirth hr:ConfirmByDateOfBirth 0 (1)
ConfirmByGovernmentId hr:ConfirmByGovernmentId 0 (1)
ConfirmByOtherId hr:ConfirmByOtherId 0 (1)
ConfirmBySex hr:ConfirmBySex 0 (1)
ConfirmByRace hr:ConfirmByRace 0 (1)
AdditionalItems hr:AdditionalItems 0 unbounded
Collapse Derivation Tree:
Collapse References:
hr:SubjectConfirmation, hr:SubjectConfirmation, hr:SubjectConfirmation, hr:SubjectConfirmation
