Definition Type: Element
Name: ContractInformation
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: Assignment.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

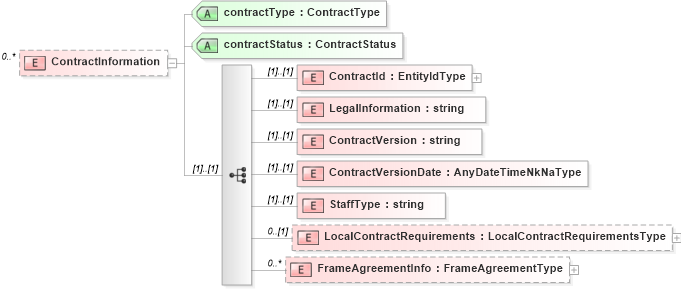

Collapse XSD Schema Diagram:
Drilldown into FrameAgreementInfo in schema assignment_xsd Drilldown into LocalContractRequirements in schema assignment_xsd Drilldown into StaffType in schema assignment_xsd Drilldown into ContractVersionDate in schema assignment_xsd Drilldown into ContractVersion in schema assignment_xsd Drilldown into LegalInformation in schema assignment_xsd Drilldown into ContractId in schema assignment_xsd Drilldown into contractStatus in schema assignment_xsd Drilldown into contractType in schema assignment_xsdXSD Diagram of ContractInformation in schema assignment_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="ContractInformation" minOccurs="0" maxOccurs="unbounded">
    <xsd:complexType>
        <xsd:sequence>
            <xsd:element name="ContractId" type="EntityIdType" />
            <xsd:element name="LegalInformation" type="xsd:string" />
            <xsd:element name="ContractVersion" type="xsd:string" />
            <xsd:element name="ContractVersionDate" type="AnyDateTimeNkNaType" />
            <xsd:element name="StaffType" type="xsd:string" />
            <xsd:element name="LocalContractRequirements" type="LocalContractRequirementsType" minOccurs="0" />
            <xsd:element name="FrameAgreementInfo" type="FrameAgreementType" minOccurs="0" maxOccurs="unbounded" />
        </xsd:sequence>
        <xsd:attribute name="contractType" type="ContractType" use="required" />
        <xsd:attribute name="contractStatus" type="ContractStatus" use="required" />
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ContractId hr:ContractId (1) (1)
LegalInformation hr:LegalInformation (1) (1)
ContractVersion hr:ContractVersion (1) (1)
ContractVersionDate hr:ContractVersionDate (1) (1)
StaffType hr:StaffType (1) (1)
LocalContractRequirements hr:LocalContractRequirements 0 (1)
FrameAgreementInfo hr:FrameAgreementInfo 0 unbounded
Collapse Child Attributes:
Name Type Default Value Use
contractType hr:contractType Required
contractStatus hr:contractStatus Required
