<xsd:complexType name="CriminalReportType">
<xsd:sequence>
<xsd:element name="CriminalCase" minOccurs="0" maxOccurs="unbounded">
<xsd:complexType>
<xsd:sequence>
<xsd:element name="AgencyReference" type="AgencyReferenceType" minOccurs="0" maxOccurs="unbounded">
<xsd:annotation>
<xsd:documentation>Case, Docket or other identifier and associated File Date assigned by the reporting agency.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ArrestingAgency" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Originating arrest agency ID
</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="CourtName" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Actual name of court searched. </xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="CourtType" type="CourtTypeType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Actual jurisdiction of court to be searched. i.e. Felony, Misdemeanor, Both.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="CourtJurisdiction" type="CourtJurisdictionType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Actual jurisdiction of court to be searched. i.e. City, State, Province, etc.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="CaseFileDate" type="FlexibleDatesType" minOccurs="0" />
<xsd:element name="SubjectConfirmation" type="ConfirmationType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Details regarding confirmation of search subjects identity.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="SubjectIdentification" type="SubjectIdentificationType" minOccurs="0" maxOccurs="unbounded">
<xsd:annotation>
<xsd:documentation>Additional Agency supplied personal information applicable to the subject. i.e. Alias's</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="Charge" minOccurs="0" maxOccurs="unbounded">
<xsd:complexType>
<xsd:sequence>
<xsd:element name="ChargeId" type="EntityIdType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Identifier related to the charge. i.e. Count</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ChargeOrComplaint" type="xsd:string">
<xsd:annotation>
<xsd:documentation>Identifies a crime, offense, infraction or violation for which the defendant was charged.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ChargeTypeClassification" type="ChargeQualifiers" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Identifies the seriousness of the offense:felony,misdemeanor, infraction,etc</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ChargeClassification" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Further qualification of ChargeTypeClassification. i.e. ChargeTypeClassification = misdemeanor and ChargeClassification = A.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ChargeDate" type="FlexibleDatesType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Date the charge was filed.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ArrestDate" type="FlexibleDatesType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Date of the arrest/summons served</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="OffenseDate" type="FlexibleDatesType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Date offense was committed</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="Sentence" type="xsd:string" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Information regarding the penalty for a given offense
including Length of sentence, fines, restitution, etc.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="SentenceDate" type="FlexibleDatesType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Date of sentencing</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="Disposition" type="DispositionType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Guilty, not guilty, pled guilty, mistrial, etc</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="DispositionDate" type="FlexibleDatesType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>Date of disposition</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="ProbationStatus" type="xsd:string" minOccurs="0" />
<xsd:element name="Plaintiff" type="PlaintiffType" minOccurs="0" maxOccurs="unbounded">
<xsd:annotation>
<xsd:documentation>The entity who brings a case to court; who sues. May also be called "claimant", "petitioner" or "applicant</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="Defendant" type="DefendantType" minOccurs="0">
<xsd:annotation>
<xsd:documentation>The person, company or organization who defends a legal action taken by a plaintiff and against whom the court has been asked to order damages or specific corrective action redress some type of unlawful or improper action alleged by the plaintiff.</xsd:documentation>
</xsd:annotation>
</xsd:element>
<xsd:element name="Comments" type="xsd:string" minOccurs="0" maxOccurs="unbounded" />
<xsd:element name="AdditionalItems" type="FlexibleDetailType" minOccurs="0" maxOccurs="unbounded" />
</xsd:sequence>
</xsd:complexType>
</xsd:element>
<xsd:element name="AdditionalItems" type="FlexibleDetailType" minOccurs="0" maxOccurs="unbounded" />
</xsd:sequence>
</xsd:complexType>
</xsd:element>
</xsd:sequence>
<xsd:attribute name="qualifier" type="SearchQualifiersCriminal" use="required" />
</xsd:complexType>
|

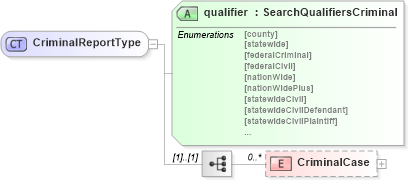

XSD Schema Diagram:
