Definition Type: Element
Name: Deduction
Namespace: http://ns.hr-xml.org/2007-04-15
Type: hr:DeductionType
Containing Schema: PayrollInstructions.xsd
MinOccurs 0
MaxOccurs (1)
Abstract

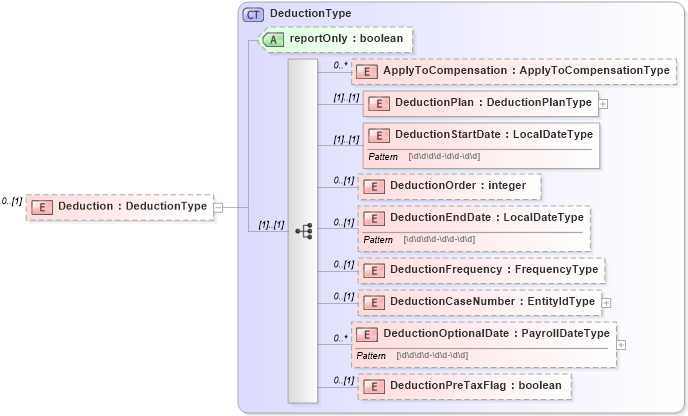

Collapse XSD Schema Diagram:
Drilldown into DeductionPreTaxFlag in schema payrollinstructions_xsd Drilldown into DeductionOptionalDate in schema payrollinstructions_xsd Drilldown into DeductionCaseNumber in schema payrollinstructions_xsd Drilldown into DeductionFrequency in schema payrollinstructions_xsd Drilldown into DeductionEndDate in schema payrollinstructions_xsd Drilldown into DeductionOrder in schema payrollinstructions_xsd Drilldown into DeductionStartDate in schema payrollinstructions_xsd Drilldown into DeductionPlan in schema payrollinstructions_xsd Drilldown into ApplyToCompensation in schema payrollinstructions_xsd Drilldown into reportOnly in schema payrollinstructions_xsd Drilldown into DeductionType in schema payrollinstructions_xsdXSD Diagram of Deduction in schema payrollinstructions_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="Deduction" type="DeductionType" minOccurs="0" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
ApplyToCompensation hr:ApplyToCompensation 0 unbounded
DeductionPlan hr:DeductionPlan (1) (1)
DeductionStartDate hr:DeductionStartDate (1) (1)
DeductionOrder hr:DeductionOrder 0 (1)
DeductionEndDate hr:DeductionEndDate 0 (1)
DeductionFrequency hr:DeductionFrequency 0 (1)
DeductionCaseNumber hr:DeductionCaseNumber 0 (1)
DeductionOptionalDate hr:DeductionOptionalDate 0 unbounded
DeductionPreTaxFlag hr:DeductionPreTaxFlag 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
reportOnly hr:reportOnly (Optional)
Collapse Derivation Tree:
