Definition Type: Element
Name: Dependent
Namespace: http://ns.hr-xml.org/2007-04-15
Type: hr:DependentDataType
Containing Schema: Enrollment.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Collapse XSD Schema Diagram:

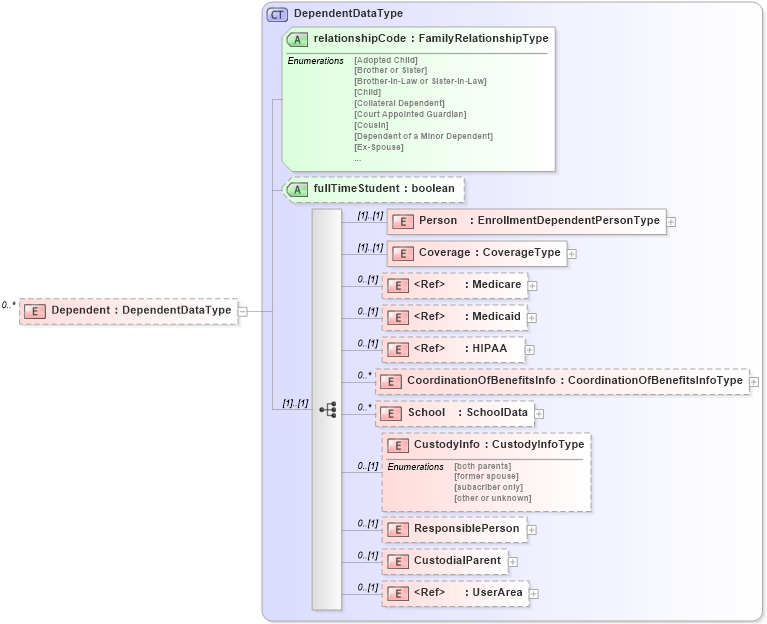

Drilldown into UserArea in schema userarea_xsd Drilldown into CustodialParent in schema enrollment_xsd Drilldown into ResponsiblePerson in schema enrollment_xsd Drilldown into CustodyInfo in schema enrollment_xsd Drilldown into School in schema enrollment_xsd Drilldown into CoordinationOfBenefitsInfo in schema enrollment_xsd Drilldown into HIPAA in schema uslocalizations_xsd1 Drilldown into Medicaid in schema uslocalizations_xsd1 Drilldown into Medicare in schema uslocalizations_xsd1 Drilldown into Coverage in schema enrollment_xsd Drilldown into Person in schema enrollment_xsd Drilldown into fullTimeStudent in schema enrollment_xsd Drilldown into relationshipCode in schema enrollment_xsd Drilldown into DependentDataType in schema enrollment_xsdXSD Diagram of Dependent in schema enrollment_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="Dependent" type="DependentDataType" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Person hr:Person (1) (1)
Coverage hr:Coverage (1) (1)
Medicare hr:Medicare 0 (1)
Medicaid hr:Medicaid 0 (1)
HIPAA hr:HIPAA 0 (1)
CoordinationOfBenefitsInfo hr:CoordinationOfBenefitsInfo 0 unbounded
School hr:School 0 unbounded
CustodyInfo hr:CustodyInfo 0 (1)
ResponsiblePerson hr:ResponsiblePerson 0 (1)
CustodialParent hr:CustodialParent 0 (1)
UserArea hr:UserArea 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
relationshipCode hr:relationshipCode Required
fullTimeStudent hr:fullTimeStudent (Optional)
Collapse Derivation Tree:
