Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: Disposition
Namespace: http://www.openapplications.org/oagis
Type: nsC:Status
Containing Schema: Invoice.xsd
Abstract
Documentation:
Determines the receipt routing of an item or part. Examples of values include: Customer consignment Inspection Vendor consignment Blocked Bonded User defined SYNONYMS Receipt Routing Material Status Material Condition Code

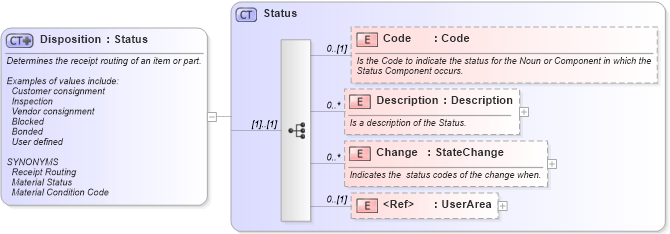

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema invoice_xsd Drilldown into Change in schema invoice_xsd Drilldown into Description in schema invoice_xsd Drilldown into Code in schema invoice_xsd Drilldown into Status in schema invoice_xsdXSD Diagram of Disposition in schema invoice_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xs:complexType name="Disposition">
    <xs:annotation>
        <xs:documentation source="http://www.openapplications.org/oagis">Determines the receipt routing of an item or part.

Examples of values include:
  Customer consignment
  Inspection
  Vendor consignment
  Blocked
  Bonded
  User defined

SYNONYMS
  Receipt Routing
  Material Status
  Material Condition Code</xs:documentation>
    </xs:annotation>
    <xs:complexContent>
        <xs:extension base="Status" />
    </xs:complexContent>
</xs:complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Code nsC:Code 0 (1)
Description nsC:Description 0 unbounded
Change nsC:Change 0 unbounded
UserArea nsC:UserArea 0 (1)
Collapse Derivation Tree:
Collapse References:
nsC:Disposition, nsC:RoutingDisposition
