Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: DocumentId
Namespace: http://www.openapplications.org/oagis
Type: nsC:DocumentIdType
Containing Schema: Invoice.xsd
Abstract
Documentation:
Is the primary DocumentId of the document for the given context. For example, if a buyer is sending a Purchase Order to a Suplier the PurchaseOrder Id will be contained with in the DocumentId. Similarily, in the instance of a semantic name of a SalesOrderDocumentReference the DocumentId will carry the senders identifier for the SalesOrder in the DocumentId and the cross-references would be provided by using the other semantic Docmentids.

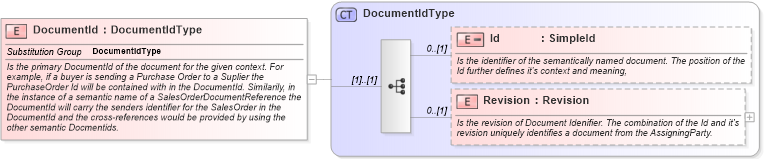

Collapse XSD Schema Diagram:
Drilldown into Revision in schema invoice_xsd Drilldown into Id in schema invoice_xsd Drilldown into DocumentIdType in schema invoice_xsdXSD Diagram of DocumentId in schema invoice_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xs:element name="DocumentId" type="DocumentIdType" substitutionGroup="DocumentIdType">
    <xs:annotation>
        <xs:documentation source="http://www.openapplications.org/oagis">Is the primary DocumentId of the document for the given context. For example, if a buyer is sending a Purchase Order to a Suplier the PurchaseOrder Id will be contained with in the DocumentId. Similarily, in the instance of a semantic name of a SalesOrderDocumentReference the DocumentId will carry the senders identifier for the SalesOrder in the DocumentId and the cross-references would be provided by using the other semantic Docmentids.</xs:documentation>
    </xs:annotation>
</xs:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Id nsC:Id 0 (1)
Revision nsC:Revision 0 (1)
Collapse Derivation Tree:
Collapse References:
nsC:DocumentIdType
