<xs:complexType name="DocumentOrderHeader">
<xs:complexContent>
<xs:restriction base="DocumentHeader">
<xs:sequence>
<xs:element ref="DocumentIds" minOccurs="0">
<xs:annotation>
<xs:documentation source="http://www.openapplications.org/oagis">Is the identifier for the document. It is possible to carry the document identifier for the other Parties. These DocumentIds are referenced by sematic names.</xs:documentation>
<xs:documentation source="http://www.openapplications.org/oagis">Is the identifier for the document. It is possible to carry the document identifier for the other Parties. These DocumentIds are referenced by sematic names.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="LastModificationDateTime" type="DateTime" minOccurs="0">
<xs:annotation>
<xs:documentation source="http://www.openapplications.org/oagis">Is the date and time the document was last modified. This is not the date and time that the BOD message was sent.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="DocumentDateTime" type="DateTime" minOccurs="0">
<xs:annotation>
<xs:documentation source="http://www.openapplications.org/oagis">Is the date and time the document was last created. This is not the date and time that the BOD message instance was created.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="Description" type="Description" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation source="http://www.openapplications.org/oagis">Is a description of the document.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element name="Note" type="Note" minOccurs="0" maxOccurs="unbounded">
<xs:annotation>
<xs:documentation source="http://www.openapplications.org/oagis">Is Note for the document in which it is contained.</xs:documentation>
</xs:annotation>
</xs:element>
<xs:element ref="DocumentReferences" minOccurs="0" />
<xs:element ref="Attachments" minOccurs="0" />
</xs:sequence>
</xs:restriction>
</xs:complexContent>
</xs:complexType>
|

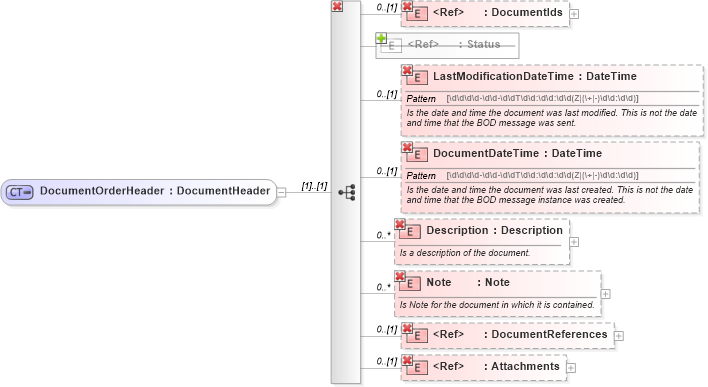

XSD Schema Diagram:
