Definition Type: Element
Name: DoNotDistributeTo
Namespace: http://ns.hr-xml.org/2007-04-15
Type: hr:DistributionType
Containing Schema: SharedStaffingModules.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract

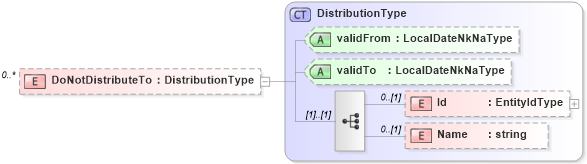

Collapse XSD Schema Diagram:
Drilldown into Name in schema sharedstaffingmodules_xsd Drilldown into Id in schema sharedstaffingmodules_xsd Drilldown into validTo in schema sharedstaffingmodules_xsd Drilldown into validFrom in schema sharedstaffingmodules_xsd Drilldown into DistributionType in schema sharedstaffingmodules_xsdXSD Diagram of DoNotDistributeTo in schema sharedstaffingmodules_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="DoNotDistributeTo" type="DistributionType" minOccurs="0" maxOccurs="unbounded" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Id hr:Id 0 (1)
Name hr:Name 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
validFrom hr:validFrom (Optional)
validTo hr:validTo (Optional)
Collapse Derivation Tree:
