Definition Type: Element
Name: EmbeddedData
Namespace: http://ns.hr-xml.org/2007-04-15
Containing Schema: SupportingMaterials.xsd
MinOccurs 0
MaxOccurs unbounded
Abstract
Documentation:
Embedded document or text. We could have a multi-page item with same metadata, so this needs to repeat.

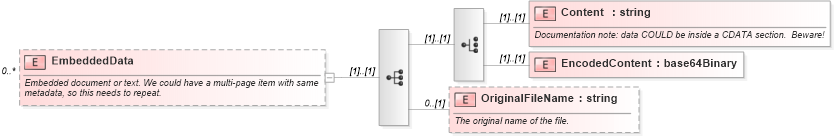

Collapse XSD Schema Diagram:
Drilldown into OriginalFileName in schema supportingmaterials_xsd Drilldown into EncodedContent in schema supportingmaterials_xsd Drilldown into Content in schema supportingmaterials_xsdXSD Diagram of EmbeddedData in schema supportingmaterials_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="EmbeddedData" minOccurs="0" maxOccurs="unbounded">
    <xsd:annotation>
        <xsd:documentation>Embedded document or text. We could have a multi-page item with same metadata, so this needs to repeat.</xsd:documentation>
    </xsd:annotation>
    <xsd:complexType>
        <xsd:sequence>
            <xsd:choice>
                <xsd:element name="Content" type="xsd:string">
                    <xsd:annotation>
                        <xsd:documentation>Documentation note: data COULD be inside a CDATA section.  Beware!</xsd:documentation>
                    </xsd:annotation>
                </xsd:element>
                <xsd:element name="EncodedContent" type="xsd:base64Binary" />
            </xsd:choice>
            <xsd:element name="OriginalFileName" type="xsd:string" minOccurs="0">
                <xsd:annotation>
                    <xsd:documentation>The original name of the file.</xsd:documentation>
                </xsd:annotation>
            </xsd:element>
        </xsd:sequence>
    </xsd:complexType>
</xsd:element>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
Content hr:Content (1) (1)
EncodedContent hr:EncodedContent (1) (1)
OriginalFileName hr:OriginalFileName 0 (1)
