Documentation for HR-XML - Human Resources XML
Definition Type: Element
Name: EmployeeInfo
Namespace: http://ns.hr-xml.org/2007-04-15
Type: hr:IndEmployeeInfoType
Containing Schema: IndicativeData.xsd
MinOccurs 0
MaxOccurs (1)
Abstract

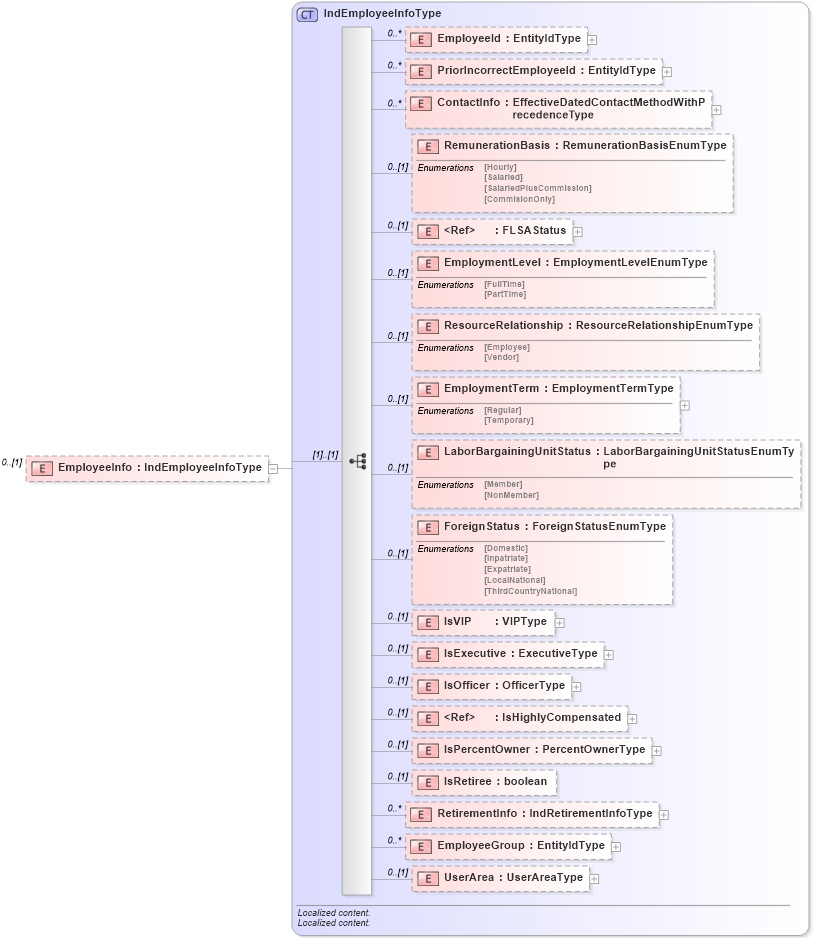

Collapse XSD Schema Diagram:
Drilldown into UserArea in schema employeeinfotypes_xsd Drilldown into EmployeeGroup in schema employeeinfotypes_xsd Drilldown into RetirementInfo in schema employeeinfotypes_xsd Drilldown into IsRetiree in schema employeeinfotypes_xsd Drilldown into IsPercentOwner in schema employeeinfotypes_xsd Drilldown into IsHighlyCompensated in schema uslocalizations_xsd2 Drilldown into IsOfficer in schema employeeinfotypes_xsd Drilldown into IsExecutive in schema employeeinfotypes_xsd Drilldown into IsVIP in schema employeeinfotypes_xsd Drilldown into ForeignStatus in schema employeeinfotypes_xsd Drilldown into LaborBargainingUnitStatus in schema employeeinfotypes_xsd Drilldown into EmploymentTerm in schema employeeinfotypes_xsd Drilldown into ResourceRelationship in schema employeeinfotypes_xsd Drilldown into EmploymentLevel in schema employeeinfotypes_xsd Drilldown into FLSAStatus in schema uslocalizations_xsd Drilldown into RemunerationBasis in schema employeeinfotypes_xsd Drilldown into ContactInfo in schema employeeinfotypes_xsd Drilldown into PriorIncorrectEmployeeId in schema employeeinfotypes_xsd Drilldown into EmployeeId in schema employeeinfotypes_xsd Drilldown into IndEmployeeInfoType in schema employeeinfotypes_xsdXSD Diagram of EmployeeInfo in schema indicativedata_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<xsd:element name="EmployeeInfo" type="IndEmployeeInfoType" minOccurs="0" />
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EmployeeId hr:EmployeeId 0 unbounded
PriorIncorrectEmployeeId hr:PriorIncorrectEmployeeId 0 unbounded
ContactInfo hr:ContactInfo 0 unbounded
RemunerationBasis hr:RemunerationBasis 0 (1)
FLSAStatus hr:FLSAStatus 0 (1)
EmploymentLevel hr:EmploymentLevel 0 (1)
ResourceRelationship hr:ResourceRelationship 0 (1)
EmploymentTerm hr:EmploymentTerm 0 (1)
LaborBargainingUnitStatus hr:LaborBargainingUnitStatus 0 (1)
ForeignStatus hr:ForeignStatus 0 (1)
IsVIP hr:IsVIP 0 (1)
IsExecutive hr:IsExecutive 0 (1)
IsOfficer hr:IsOfficer 0 (1)
IsHighlyCompensated hr:IsHighlyCompensated 0 (1)
IsPercentOwner hr:IsPercentOwner 0 (1)
IsRetiree hr:IsRetiree 0 (1)
RetirementInfo hr:RetirementInfo 0 unbounded
EmployeeGroup hr:EmployeeGroup 0 unbounded
UserArea hr:UserArea 0 (1)
Collapse Derivation Tree:
