Documentation for HR-XML - Human Resources XML
Definition Type: ComplexType
Name: EncryptedDataType
Namespace: http://www.w3.org/2001/04/xmlenc#
Type: xenc:EncryptedType
Containing Schema: xenc-schema.xsd
Abstract

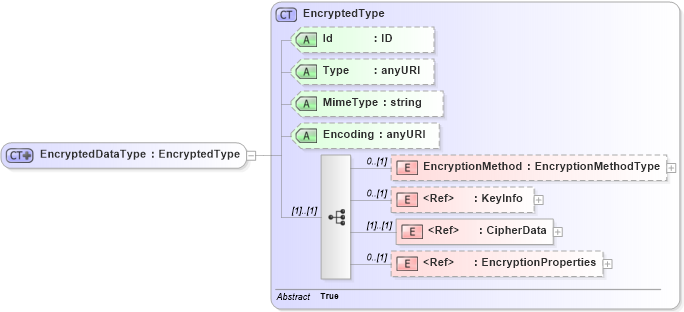

Collapse XSD Schema Diagram:
Drilldown into EncryptionProperties in schema xenc-schema_xsd Drilldown into CipherData in schema xenc-schema_xsd Drilldown into KeyInfo in schema xmldsig-core-schema_xsd1 Drilldown into EncryptionMethod in schema xenc-schema_xsd Drilldown into Encoding in schema xenc-schema_xsd Drilldown into MimeType in schema xenc-schema_xsd Drilldown into Type in schema xenc-schema_xsd Drilldown into Id in schema xenc-schema_xsd Drilldown into EncryptedType in schema xenc-schema_xsdXSD Diagram of EncryptedDataType in schema xenc-schema_xsd (HR-XML - Human Resources XML)
Collapse XSD Schema Code:
<complexType name="EncryptedDataType">
    <complexContent>
        <extension base="xenc:EncryptedType">
        </extension>
    </complexContent>
</complexType>
Collapse Child Elements:
Name Type Min Occurs Max Occurs
EncryptionMethod xenc:EncryptionMethod 0 (1)
KeyInfo ds:KeyInfo 0 (1)
CipherData xenc:CipherData (1) (1)
EncryptionProperties xenc:EncryptionProperties 0 (1)
Collapse Child Attributes:
Name Type Default Value Use
Id xenc:Id Optional
Type xenc:Type Optional
MimeType xenc:MimeType Optional
Encoding xenc:Encoding Optional
Collapse Derivation Tree:
Collapse References:
xenc:EncryptedData
